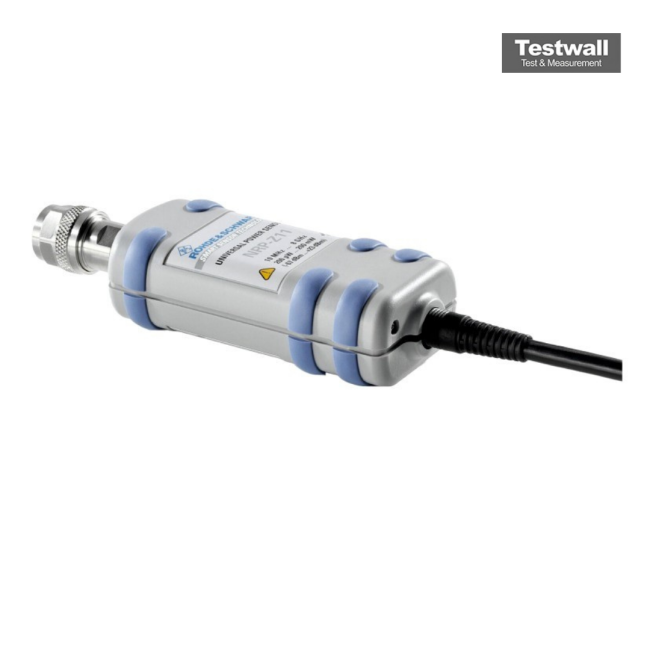

Rohde & Schwarz NRP-Z11
Power Sensor
10 MHz to 8 GHz Frequency Range
-67 dBm to +20 dBm (200 pW to 100 mW) Power Measurement Range
N-Type (50 Ω) Connector Type
± 0.9 dB (at maximum frequency and minimum power) Measurement Uncertainty
≤ 1.15 (10 MHz to 2 GHz), ≤ 1.25 (2 GHz to 8 GHz) SWR (Standing Wave Ratio)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 8 GHz |
| Power Measurement Range | -67 dBm to +20 dBm (200 pW to 100 mW) |
| Connector Type | N-Type (50 Ω) |
| Measurement Uncertainty | ± 0.9 dB (at maximum frequency and minimum power) |
| SWR (Standing Wave Ratio) | ≤ 1.15 (10 MHz to 2 GHz), ≤ 1.25 (2 GHz to 8 GHz) |
| Interface | Rohde & Schwarz NRP bus (USB-based proprietary interface) |
| Compatible Instruments | Rohde & Schwarz NRP2, NRP-Z4, NRP-Z5 base units and USB adapters |
| Operating Temperature Range | 0 °C to +55 °C |
| Maximum Input Power (Continuous) | 200 mW (23 dBm) |
| Dimensions (L x Diameter) | Approximately 145 mm x 34 mm |
| Model | NRP-Z11 |
|---|
The Rohde & Schwarz NRP-Z11 is a universal power sensor covering a dynamic power range from 200 pW to 200 mW and a frequency range of 10 MHz to 8 GHz. It offers high accuracy and fast measurement speeds, making it ideal for precise RF power measurements in diverse applications.
It is well-suited for installation in RF labs, production lines, and service environments requiring reliable power monitoring and detailed diagnostics.
Testwall can supply the used Rohde & Schwarz NRP-Z11, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z11.
