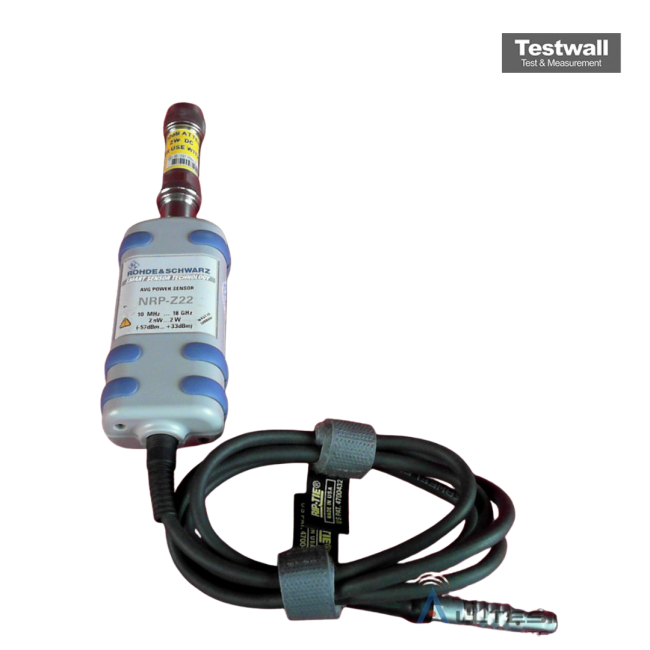

Rohde & Schwarz NRP-Z22
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | 2 nW to 2 W (-57 to +33 dBm) |
| Maximum Power | 3 W average, 10 W peak (10 µs) |
| Video Bandwidth | >50 kHz |
| Rise Time | <8 µs |
| Sensor Type | peak and average (3-path diode), 10 dB attenuator |
| SWR | <1.14 (to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 12.4 GHz), <1.30 (to 18 GHz) |
| Measurement Speed | 550 readings/s typ. (continuous average, 10 µs aperture) |
| Connector | Type-N male |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
| Interfaces | USB (full speed) |
| Dimensions | 48 × 31 × 214 mm |
| Weight | <0.37 kg |
Compatible power meters
The Rohde & Schwarz NRP-Z22 is a high-precision power sensor operating from 10 MHz to 18 GHz, capable of measuring from -57 dBm to +33 dBm. It features an N-type male connector and delivers up to 1500 measurements per second in buffered mode. The sensor supports use with an NRP2 base unit or USB interface for PC connectivity.
Designed with patented three-path diode technology, it ensures accurate power measurements regardless of modulation type. Its overlap of 6 dB per path allows seamless transition between ranges, minimizing signal distortion and enhancing measurement speed and reliability.
Testwall can supply the used Rohde & Schwarz NRP-Z22, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z22.
