Keysight (Agilent)

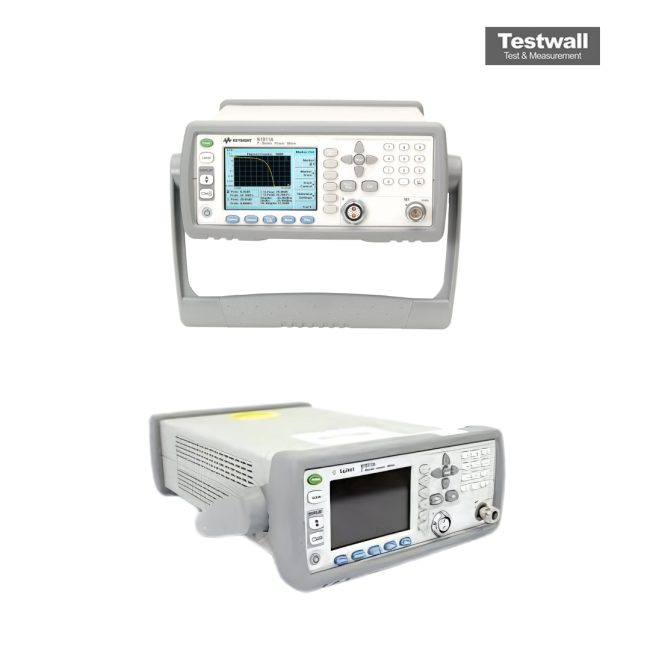

Keysight (Agilent) N1911A
Single Channel Power Meter 50MHz - 40GHz
1 Channels
1500 readings/s min. Measurement Speed
30 MHz Video Bandwidth
GPIB, LAN (LXI), USB Interfaces
P-series N1921A/N1922A, E9320 series, E441x/E930x, 8480 series, N8480 series Compatible Sensors
| Attribute | Value |
|---|---|
| Channels | 1 |
| Measurement Speed | 1500 readings/s min. |
| Video Bandwidth | 30 MHz |
| Interfaces | GPIB, LAN (LXI), USB |
| Compatible Sensors | P-series N1921A/N1922A, E9320 series, E441x/E930x, 8480 series, N8480 series |
| Frequency Range | 9 kHz to 110 GHz; 50 MHz to 40 GHz with P-series sensors |
| Power Range | -70 to +44 dBm; -35 to +20 dBm with P-series sensors |
| Accuracy | ±0.2 dB with N1921A, ±0.3 dB with N1922A |
| Time Resolution | 100 MSa/s; rise time 13 ns max. |
| Measurement Types | average, peak, peak-to-average, rise/fall time, pulse width, CCDF |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| 8481A | 10 MHz to 18 GHz | -30 to +20 dBm | thermocouple |
| 8481B | 10 MHz to 18 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8481D | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
| 8481H | 10 MHz to 18 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8482A | 100 kHz to 4.2 GHz | -30 to +20 dBm | thermocouple |
| 8482B | 100 kHz to 4.2 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8482H | 100 kHz to 4.2 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8483A | 100 kHz to 2 GHz | -30 to +20 dBm | diode, average |
| 8485A | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -30 to +20 dBm | thermocouple |
| 8485D | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -70 to -20 dBm | diode, average |
| 8487A | 50 MHz to 50 GHz | -30 to +20 dBm | thermocouple |
| 8487D | 50 MHz to 50 GHz | -70 to -20 dBm | diode, average |
| R8486A | 26.5 to 40 GHz | -30 to +20 dBm | thermocouple, waveguide |
| R8486D | 26.5 to 40 GHz | -70 to -20 dBm | diode, average |
| Q8486A | 33 to 50 GHz | -30 to +20 dBm | thermocouple, waveguide |
| Q8486D | 33 to 50 GHz | -70 to -20 dBm | diode, average |
| V8486A | 50 to 75 GHz | -30 to +20 dBm (Opt. H02: -60 to +20 dBm) | diode, average, waveguide |
| W8486A | 75 to 110 GHz | -30 to +20 dBm | diode, average, waveguide |
| E8486A | 60 to 90 GHz (Opt. 201: 54 to 95 GHz) | -30 to +20 dBm (Opt. 100), -60 to +20 dBm (Opt. 200/201) | diode, average, waveguide |
| E4412A | 10 MHz to 18 GHz | -70 to +20 dBm | diode, CW |
| E4413A | 50 MHz to 26.5 GHz | -70 to +20 dBm | diode, CW |
| E9300A | 10 MHz to 18 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9300B | 10 MHz to 18 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9300H | 10 MHz to 18 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9301A | 10 MHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9301B | 10 MHz to 6 GHz | -30 to +44 dBm | diode, average, wide dynamic range |
| E9301H | 10 MHz to 6 GHz | -50 to +30 dBm | diode, average, wide dynamic range |
| E9304A | 9 kHz to 6 GHz | -60 to +20 dBm | diode, average, wide dynamic range |
| E9321A | 50 MHz to 6 GHz | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) | peak and average (diode) |
| E9322A | 50 MHz to 6 GHz | -60 to +20 dBm (average only mode), -45 to +20 dBm (normal mode) | peak and average (diode) |
| E9323A | 50 MHz to 6 GHz | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) | peak and average (diode) |
| E9325A | 50 MHz to 18 GHz | -65 to +20 dBm (average only mode), -50 to +20 dBm (normal mode) | peak and average (diode) |
| E9326A | 50 MHz to 18 GHz | -60 to +20 dBm (average only mode), -45 to +20 dBm (normal mode) | peak and average (diode) |
| E9327A | 50 MHz to 18 GHz | -60 to +20 dBm (average only mode), -40 to +20 dBm (normal mode) | peak and average (diode) |
| N8481A | 10 MHz to 18 GHz | -35 to +20 dBm | thermocouple |
| N8482A | 100 kHz to 6 GHz | -35 to +20 dBm | thermocouple |
| N8485A | 10 MHz to 26.5 GHz (33 GHz with Opt. 033) | -35 to +20 dBm | thermocouple |
| N8486AR | 26.5 to 40 GHz | -35 to +20 dBm | thermocouple, waveguide |
| N8487A | 50 MHz to 50 GHz | -35 to +20 dBm | thermocouple |
| N8488A | 10 MHz to 67 GHz (to 70 GHz typ.) | -35 to +20 dBm | thermocouple |
| N1921A | 50 MHz to 18 GHz | -35 to +20 dBm (≥500 MHz), -30 to +20 dBm (50 to 500 MHz) | peak and average (diode), wideband |
| N1922A | 50 MHz to 40 GHz | -35 to +20 dBm (≥500 MHz), -30 to +20 dBm (50 to 500 MHz) | peak and average (diode), wideband |
The Keysight (Agilent) N1911A is a precision single-channel power meter supporting 30 MHz video bandwidth and real-time capture at 100 Msps. It includes 22 predefined formats, intuitive pulse measurement analysis tools, and internal zeroing and calibration during DUT connection. With versatile connectivity (USB, LAN, GPIB), it supports sensors from 9 kHz to 110 GHz and delivers robust statistical functions like CCDF.
Ideal for average power measurement, WiMAX, DME, and HSDPA testing, it integrates seamlessly with BenchVue software for automated testing workflows.
Testwall can supply the used Keysight (Agilent) N1911A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N1911A.
