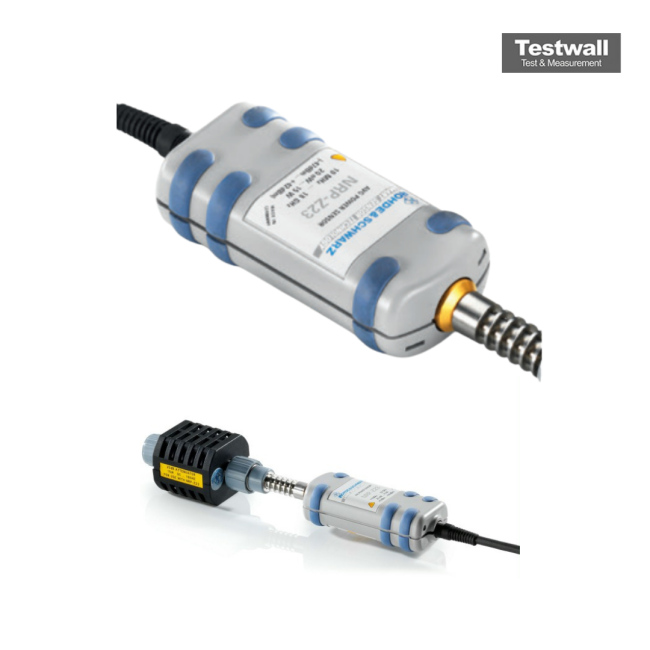

Rohde & Schwarz NRP-Z23
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | 20 nW to 15 W (-47 to +42 dBm) |
| Video Bandwidth | >50 kHz |
| Rise Time | <8 µs |
| Connector | Type-N male |
| Sensor Type | peak and average (3-path diode), 20 dB attenuator |
| Maximum Power | 18 W average, 100 W peak (10 µs) |
| SWR | <1.14 (to 2.4 GHz), <1.25 (to 8 GHz), <1.30 (to 12.4 GHz), <1.41 (to 18 GHz) |
| Measurement Speed | 550 readings/s typ. (continuous average, 10 µs aperture) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
| Interfaces | USB (full speed) |
| Dimensions | 60 × 54 × 285 mm |
| Weight | <0.48 kg |
Compatible power meters
The Rohde & Schwarz NRP-Z23 is a precision power sensor designed for high-frequency measurements, covering a frequency range from 10 MHz to 18 GHz with a dynamic power measurement range of -47 dBm to +42 dBm. This diode-based sensor ensures highly accurate RMS power readings across a broad range, ideal for RF and microwave applications. It features fast measurement speeds, USB compatibility, and exceptional linearity for demanding test environments.
This power sensor is perfect for both laboratory and field applications, offering plug-and-play capability and reliable performance in high-frequency test setups. Its compact design enhances portability and ease of integration.
Testwall can supply the used Rohde & Schwarz NRP-Z23, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z23.
