Rohde & Schwarz NRT
| Attribute | Value |
|---|---|
| Frequency Range | 200 kHz to 4 GHz |
| Power Range | 0.3 mW to 2 kW |
| Interfaces | GPIB, RS-232, AUX BNC |
| Dimensions | 219 × 103 × 240 mm |
| Weight | 3.5 kg (with all Opt.) |
| Channels | 1 NRT-Z input standard; Opt. NRT-B2: 2 more NRT-Z inputs; Opt. NRT-B1: NAP-Z input (one active at a time) |
| Compatible Sensors | NRT-Z14, NRT-Z43, NRT-Z44; NAP-Z series with Opt. NRT-B1 |
| Measurement Types | average, burst average, peak (PEP), crest factor, CCDF, SWR, return loss, reflection |
| Display | LCD, 4½ digits, with 2 bargraphs |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| NRT-Z14 | 25 MHz to 1 GHz | 0.006 to 120 W average | directional power sensor, average and peak |
| NRT-Z43 | 400 MHz to 4 GHz | 0.007 to 75 W average | directional power sensor, average and peak |
| NRT-Z44 | 200 MHz to 4 GHz | 0.003 to 120 W average | directional power sensor, average and peak |
| NAP-Z5 | 25 MHz to 1 GHz | 0.1 to 350 W | directional power sensor, average |
| NAP-Z6 | 25 MHz to 1 GHz | 0.3 to 1100 W | directional power sensor, average |
| NAP-Z7 | 0.4 to 80 MHz | 0.05 to 200 W average, 0.5 to 200 W peak | directional power sensor, average and peak |
| NAP-Z8 | 0.2 to 80 MHz (peak 0.4 to 80 MHz) | 0.5 to 2000 W average, 5 to 2000 W peak | directional power sensor, average and peak |

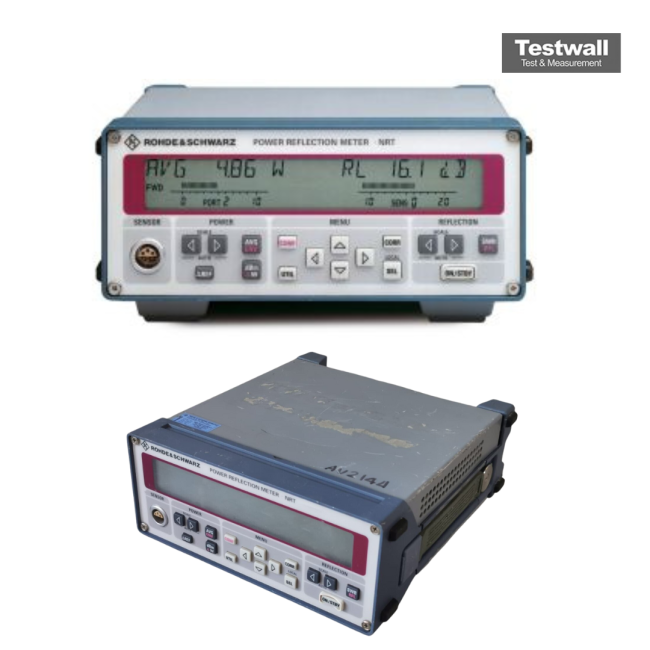

The Rohde & Schwarz NRT is a directional power meter designed for precise measurements of power and reflection in real-time conditions. It features simultaneous display of power and reflection, supports average power measurements independent of modulation type, and provides detailed analysis of peak power, crest factor, and average burst power. Its intelligent sensors and digital sensor-to-base-unit interface allow plug & play functionality and direct PC connectivity.
Ideal for amplifier, transmitter, antenna, and RF/microwave generator testing, the NRT is widely used in industrial and medical sectors for installation, maintenance, and system monitoring.
Testwall can supply the used Rohde & Schwarz NRT, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRT.
