Rohde & Schwarz

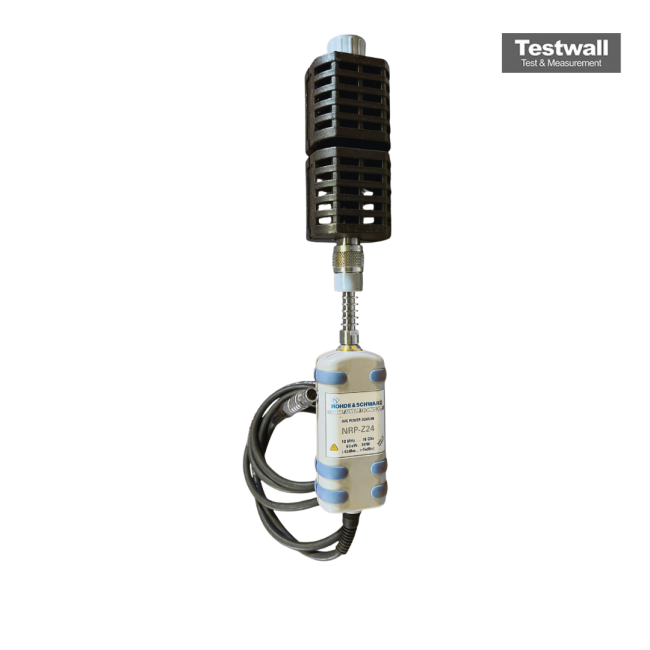

Rohde & Schwarz NRP-Z24
Power Sensor
10 MHz to 18 GHz Frequency Range
60 nW to 30 W (-42 to +45 dBm) Power Range
>50 kHz Video Bandwidth
<8 µs Rise Time
Type-N male Connector
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | 60 nW to 30 W (-42 to +45 dBm) |
| Video Bandwidth | >50 kHz |
| Rise Time | <8 µs |
| Connector | Type-N male |
| Sensor Type | peak and average (3-path diode), 25 dB attenuator |
| Maximum Power | 36 W average, 300 W peak (10 µs) |
| SWR | <1.14 (to 2.4 GHz), <1.25 (to 8 GHz), <1.30 (to 12.4 GHz), <1.41 (to 18 GHz) |
| Measurement Speed | 550 readings/s typ. (continuous average, 10 µs aperture) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
| Interfaces | USB (full speed) |
| Dimensions | 60 × 54 × 344 mm |
| Weight | <0.63 kg |
Compatible power meters
The Rohde & Schwarz NRP-Z24 Power Sensor offers a broad frequency range from 10 MHz to 18 GHz and supports power measurements from -42 dBm to +45 dBm. Equipped with an N-type male connector, it ensures high accuracy and efficiency in RF testing environments.
This sensor is ideal for applications requiring precise power readings across a wide frequency span. Suitable for both lab and field conditions due to its compact form and robust design.
Testwall can supply the used Rohde & Schwarz NRP-Z24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z24.
