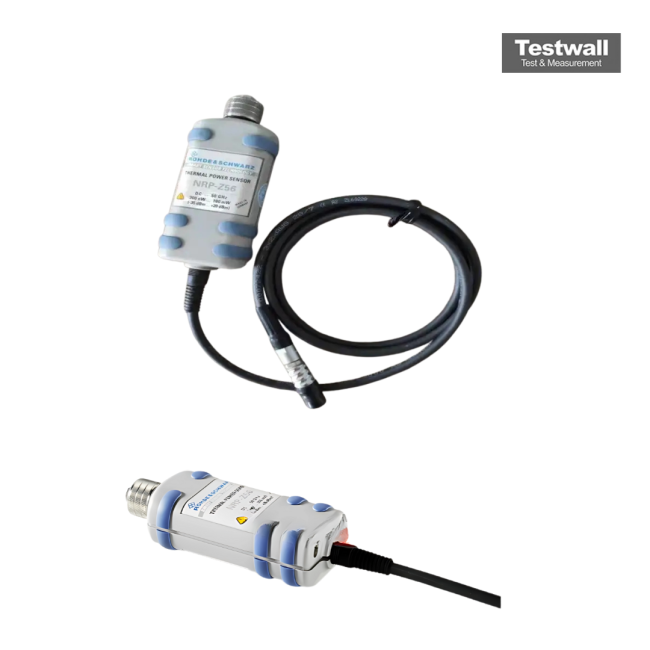

Rohde & Schwarz NRP-Z56
DC To 50GHz Thermal Power Sensor, -35dBm To +20dBm
50 MHz to 67 GHz Frequency Range
-30 dBm to +20 dBm Power Measurement Range
1.85 mm (V connector) Connector Type
± 0.9 dB (typical) Measurement Uncertainty
USB 2.0 (compatible with R&S NRP2 and NRP-Z5 base units) Interface
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 67 GHz |
| Power Measurement Range | -30 dBm to +20 dBm |
| Connector Type | 1.85 mm (V connector) |
| Measurement Uncertainty | ± 0.9 dB (typical) |
| Interface | USB 2.0 (compatible with R&S NRP2 and NRP-Z5 base units) |
| Sensor Type | Thermal (three-path diode sensor) |
| Operating Temperature Range | 0 °C to +55 °C |
| VSWR (Maximum) | 1.5 (typical, frequency dependent) |
| Zeroing Time | Approximately 3 seconds |
| Weight | Approximately 200 g |
| Model | NRP-Z56 |
|---|
The Rohde & Schwarz NRP-Z56 is a high-frequency thermal power sensor offering DC to 50 GHz range and a dynamic power measurement from -35 dBm to +20 dBm. Its broadband performance and precision make it ideal for complex RF testing.
Perfect for use in R&D, production, and field measurements, it ensures accurate thermal power monitoring across a wide spectrum, with robust reliability in high-frequency environments.
Testwall can supply the used Rohde & Schwarz NRP-Z56, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z56.
