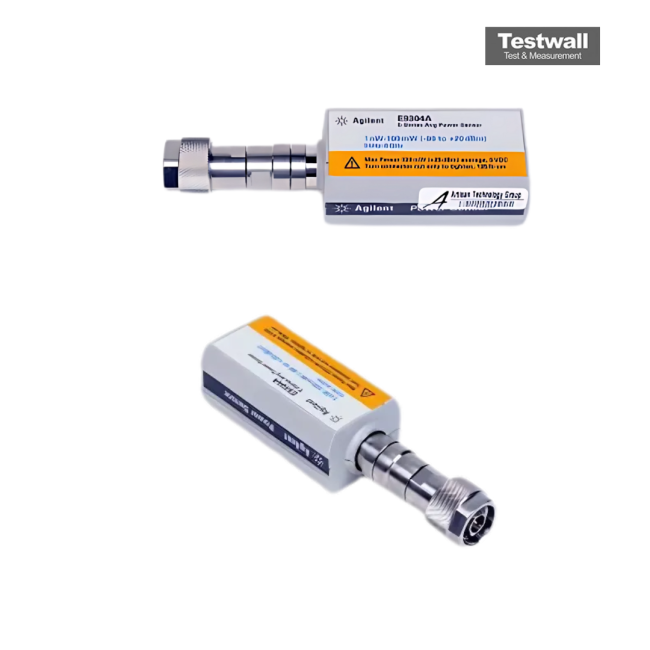

Keysight (Agilent) E9304A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Power Range | -60 to +20 dBm |
| Connector | Type-N male |
| Sensor Type | diode, average, wide dynamic range |
| Maximum Power | +25 dBm (320 mW) average, +33 dBm (2 W) peak (<10 µs) |
| SWR | 1.13 max. at 9 kHz to 2 GHz, 1.19 max. at 2 to 6 GHz |
| Linearity | ±3.0% (-60 to -10 dBm), ±2.5% (-10 to 0 dBm), ±2.0% (0 to +20 dBm) |
| Compatible Meters | EPM series E4418B/E4419B, N1913A/N1914A; EPM-P series E4416A/E4417A; P-series N1911A/N1912A |
Compatible power meters
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A
Keysight Technologies E9304A Options:
- E9304A - H18 - Special option to cover the frequency range 9 kHz to 18 GHz
The Keysight (Agilent) E9304A is a wide dynamic range average power sensor covering 9 kHz to 6 GHz, suitable for EPM and EPM-P series power meters. It measures various signal types including CW, W-CDMA, CDMA (IS-95), TDMA, OFDM, and multi-tone signals. Calibration data stored in EEPROM ensures precise error correction.
Ideal for EMC/EMI applications, including radiated immunity tests (IEC61000-4-3), it features high sensitivity (-60 to +20 dBm) and rapid measurement speeds.
Testwall can supply the used Keysight (Agilent) E9304A Average Power Sensor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9304A Average Power Sensor.
