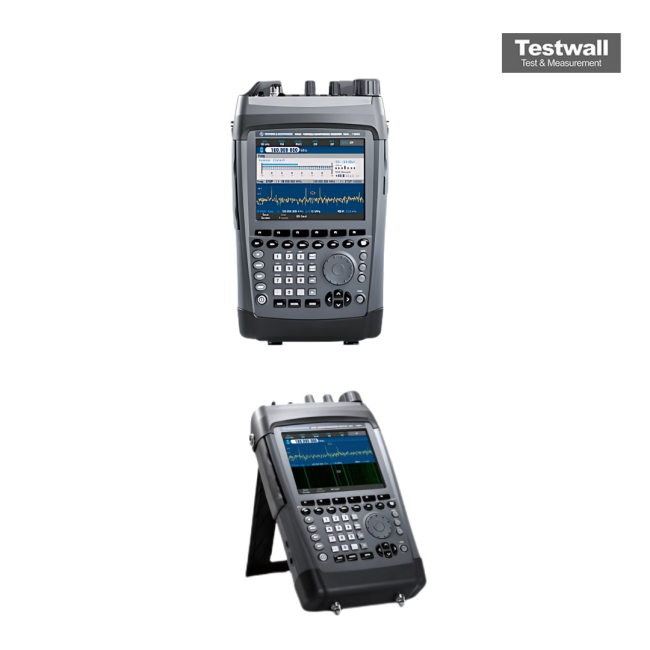

Rohde & Schwarz PR100 Portable Receiver 9 kHz-7.5 GHz, 10 MHz Real Time, Type N (f)

Rohde & Schwarz PR100 Portable Receiver 9 kHz-7.5 GHz, 10 MHz Real Time, Type N (f) Options:

• PR100 - PS - Panorama Scan: RF scan, high-speed FFT scan across user-selectable scan range, selectable spectral resolution (bin width)
• PR100 - IR - Internal Recording: recording of measured data in the receiver (64 Mbyte RAM) or on SD card, recording of audio data in WAV format, recording of I/Q data, spectra and spectrogram (waterfall) data, R&S PR100-Control software for viewing measured data on customer PC
• PR100 - RC - Remote Control: remote control of receiver via LAN interface (SCPI protocol); transfer of measured data via LAN interface; transfer of demodulated I/Q data (up to 500 kHz bandwidth) via LAN interface; R&S PR100-Control software (for remote control, data recording and data playback via PC)
• PR100 - ETM - Externally Triggered Measurements: an external sensor (not supplied with the receiver) triggers a measurement in the R&S PR100; the sensor is connected via the AUX interface
• PR100 - FS - Field Strength Measurement: the field strength is calculated using antenna factors stored in the receiver; the receiver displays the field strength directly in dBµV/m
• PR100 - FP - SHF Frequency Processing for downconverter antennas: the downconverter unit of the R&S HF907DC antenna is connected to the receiver via a control cable; the receiver recalculates the downconverted signals to display them with their original frequencies up to 18 GHz
• PR100 - GPS - GPS Software Interface: for data stream processing of external GPS module (GPS module not included in scope of delivery)
• PR100 - DF - Direction Finder Upgrade Kit: adds accurate direction finding functionality to the R&S PR100 receiver (DF antennas and cable set not included)
• PR100 - PC - Polychrome Spectrum Display: adds a color-coded spectrum display to indicate the relative signal occupancy
• PR100 - DCV - Documentation of Calibration Values
