Keysight (Agilent)

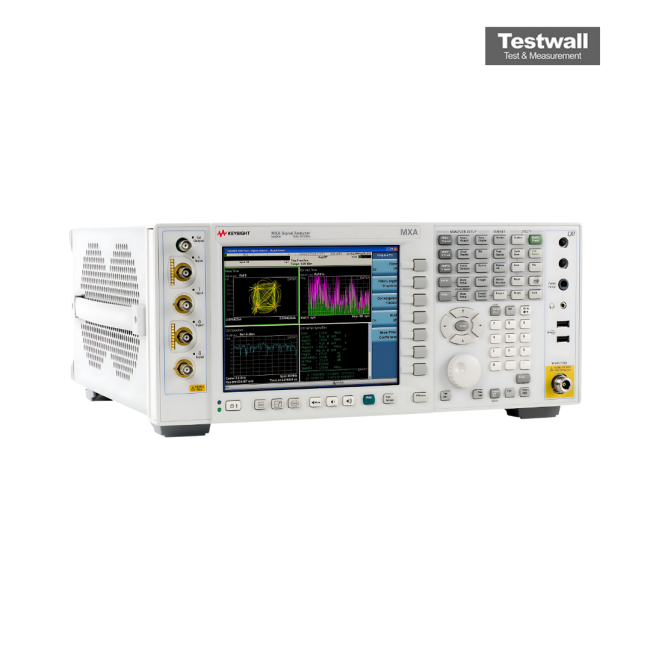

Keysight (Agilent) N9020A-526
10Hz - 26.5GHz Spectrum Analyser
10 Hz to 26.5 GHz Frequency Range
-163 dBm/Hz (with preamplifier enabled) Displayed Average Noise Level (DANL)
-106 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
±0.19 dB total amplitude accuracy Amplitude Accuracy
78 dB third-order intermodulation dynamic range Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Dynamic Range | 78 dB third-order intermodulation dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz, with 1% steps |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Sweep Time | 1 ms to 4000 s (span > 0 Hz) |
| Connectivity/Interface | LAN (LXI), USB, GPIB |
Keysight Technologies N9020A-526 Options:
- N9020A-526 - 503 - Frequency range 10 Hz to 3.6 GHz (DC coupled), 10 MHz to 3.6 GHz (AC coupled)
- N9020A-526 - 508 - Frequency range 10 Hz to 8.4 GHz (DC coupled), 10 MHz to 8.4 GHz (AC coupled)
- N9020A-526 - 513 - Frequency range 10 Hz to 13.6 GHz (DC coupled), 10 MHz to 13.6 GHz (AC coupled)
- N9020A-526 - 526 - Frequency range 10 Hz to 26.5 GHz (DC coupled), 10 MHz to 26.5 GHz (AC coupled)
- N9020A-526 - PFR - Precision frequency reference
- N9020A-526 - EA3 - Electronic attenuator, 10 Hz to 3.6 GHz, 0 to 24 dB in 1 dB steps
- N9020A-526 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9020A-526 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9020A-526 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9020A-526 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9020A-526 - B25 - 25 MHz analysis bandwidth (standard)
- N9020A-526 - B40 - 40 MHz analysis bandwidth
- N9020A-526 - B85 - 85 MHz analysis bandwidth
- N9020A-526 - B1A - 125 MHz analysis bandwidth
- N9020A-526 - B1X - 160 MHz analysis bandwidth
- N9020A-526 - BBA - Analog baseband IQ inputs
- N9020A-526 - S40 - Analog baseband IQ inputs (paired with BBA)
- N9020A-526 - CR3 - Wideband IF output
- N9020A-526 - CRP - Programmable IF output, 10 to 75 MHz center frequency
- N9020A-526 - MPB - Microwave preselector bypass
- N9020A-526 - DP2 - Enhanced digitizer, 16-bit ADC at 100 MSa/s
- N9020A-526 - EMC - EMC bandwidth (CISPR and MIL STD 461E compliant)
- N9020A-526 - RT1 - Real-time spectrum analyzer, up to 85 MHz analysis bandwidth
- N9020A-526 - RT2 - Real-time spectrum analyzer, up to 160 MHz analysis bandwidth
- N9020A-526 - YAS - Analog output (rear panel BNC)
| Model | N9020A-526 |
|---|
The Keysight (Agilent) N9020A-526 MXA Signal Analyzer provides frequency analysis up to 26.5 GHz, ensuring precise measurements for wireless and aerospace industries. It supports advanced signal processing and high-speed testing.
Ideal for validating communication signals and aerospace systems with a user-friendly interface and extensive measurement capabilities.
Testwall can supply the used Keysight (Agilent) N9020A-526 MXA Signal Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9020A-526 MXA Signal Analyzer.
