Rohde & Schwarz

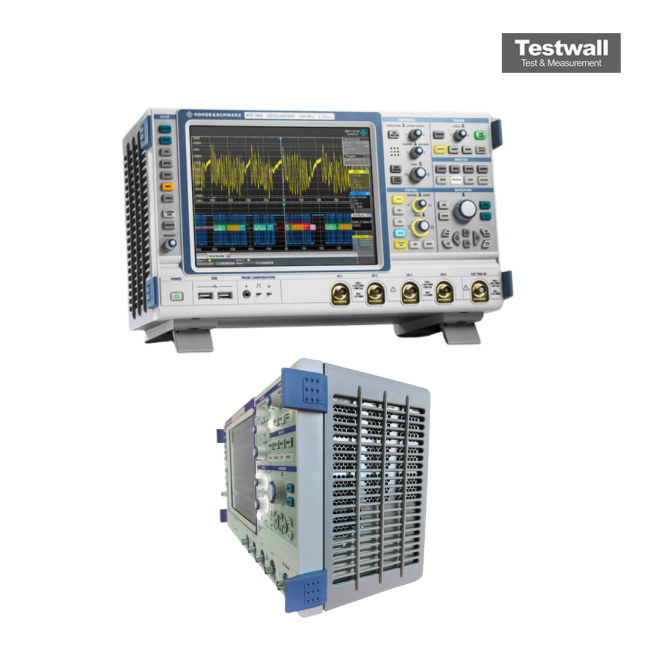

Rohde & Schwarz RTE1054 Digital Oscilloscope
500 MHz Bandwidth
4 Number of Channels
5 Gsample/s Sample Rate
50 Mpoints (standard), 200 Mpoints (optional) Memory Depth
8 bit (up to 16 bit with high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 50 Mpoints (standard), 200 Mpoints (optional) |
| Vertical Resolution | 8 bit (up to 16 bit with high-resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Time Base Range | 1 ns/div to 10000 s/div |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Connectivity | USB, LAN (LXI), HDMI, optional GPIB |
Rohde & Schwarz RTE1054 Digital Oscilloscope Options:
- RTE1054 - RTE-B1 - Mixed Signal Option, 400 MHz, 5 Gsample/s, 16 channels, 100 Msample/channel
- RTE1054 - RTE-B10 - GPIB Interface
- RTE1054 - RTE-B18 - Replacement SSD Hard Disk, incl. firmware
- RTE1054 - RTE-B19 - Replacement Hard Disk, incl. firmware
- RTE1054 - RTE-B101 - Memory Upgrade, 20 Msample per channel
- RTE1054 - RTE-B102 - Memory Upgrade, 50 Msample per channel
- RTE1054 - RTE-B207 - Upgrade of RTE1052/4 oscilloscopes to 1 GHz bandwidth, incl. calibration
- RTE1054 - RTE-K1 - I²C/SPI Triggering and Decoding
- RTE1054 - RTE-K2 - UART/RS-232 Triggering and Decoding
- RTE1054 - RTE-K3 - CAN/LIN Triggering and Decoding
- RTE1054 - RTE-K4 - FlexRay™ Triggering and Decoding
- RTE1054 - RTE-K5 - I²S Triggering and Decoding
- RTE1054 - RTE-K6 - MIL-STD-1553 Triggering and Decoding
- RTE1054 - RTE-K7 - ARINC 429 Triggering and Decoding
- RTE1054 - RTE-K31 - Power Analysis
| Model | RTE1054 |
|---|
The Rohde & Schwarz RTE1054 is a high-performance digital oscilloscope with 4 channels, 500 MHz bandwidth, and a 5GS/s sampling rate. It ensures precise signal analysis with advanced triggering and waveform analysis capabilities.
Ideal for complex debugging and signal integrity testing, the RTE1054 supports high-resolution acquisition and intuitive touchscreen control for enhanced usability.
Testwall can supply the used Rohde & Schwarz RTE1054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTE1054.
