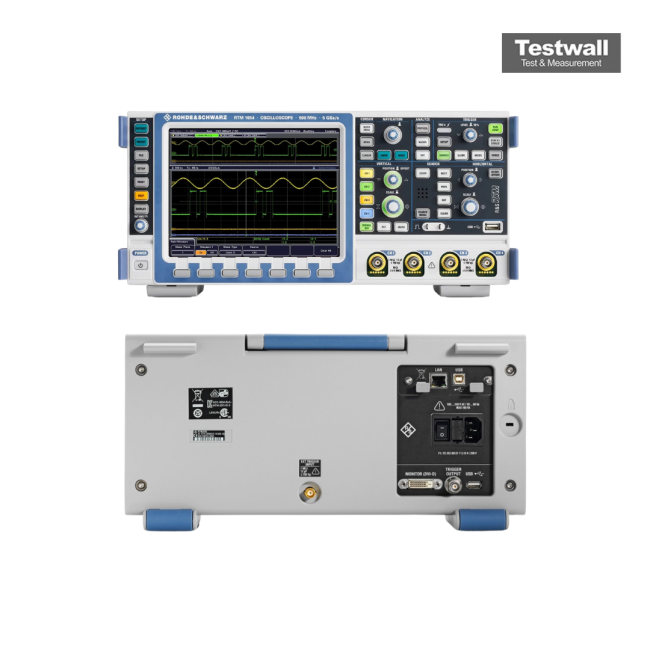

Rohde & Schwarz RTM1054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 20 Mpoints (per channel) |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Connectivity / Interfaces | USB, Ethernet (LAN), HDMI |
| Model | RTM1054 |
|---|
The Rohde & Schwarz RTM1054 is a 4-channel, 500 MHz high-performance digital oscilloscope offering 2.5 and 5 GSa/s on half of the channels, 8-bit resolution, and a rise time of 700 ps. It features 50 Ω or 1 MΩ input impedance, a 4/8 Ms/s memory, and a time base range from 1 ns/div to 50 s/div, all on a vibrant Color XGA LCD screen.
Equipped with automatic measurements, cursors, BUS decoder, LAN, dual USB ports, and optional IEEE GP-IB, the RTM1054 is ideal for high-speed signal analysis and mixed-signal debugging applications.
Testwall can supply the used Rohde & Schwarz RTM1054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM1054.
