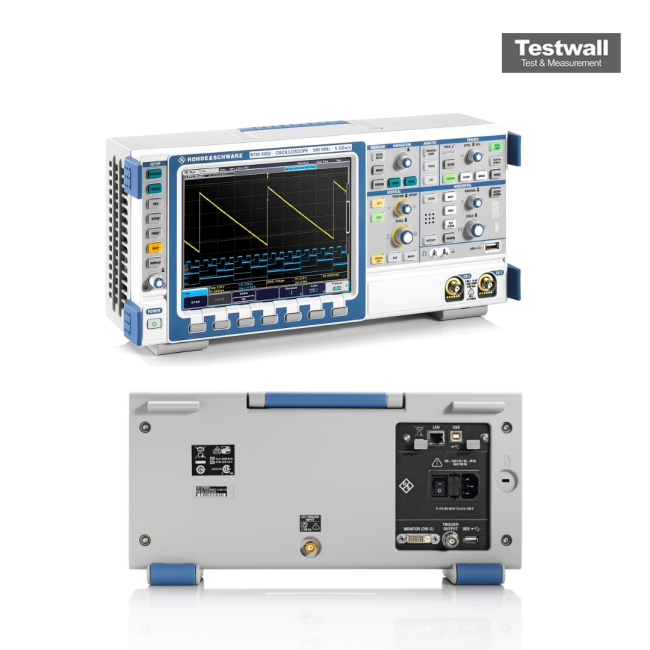

Rohde & Schwarz RTM2052 Digital Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 20 Msample (interleaved) |
| Vertical Resolution | 10-bit ADC |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ || 15 pF / 50 Ω |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Connectivity & Interfaces | USB, LAN (LXI), HDMI output |
Rohde & Schwarz RTM2052 Digital Oscilloscope Options:
- RTM2052 - RTM-B1 - Mixed Signal Option, 400 MHz (additional 16 logic channels)
- RTM2052 - RTM-B10 - GPIB Interface
- RTM2052 - RTM-B200 - Upgrade of RTM2032/4 oscilloscopes to 500 MHz bandwidth, incl. calibration
- RTM2052 - RTM-B201 - Upgrade of RTM2022/4 oscilloscopes to 350 MHz bandwidth, incl. calibration
- RTM2052 - RTM-B202 - Upgrade of RTM2022/4 oscilloscopes to 500 MHz bandwidth, incl. calibration
- RTM2052 - RTM-K1 - I²C/SPI Triggering and Decoding
- RTM2052 - RTM-K2 - UART/RS-232/RS-422/RS-485 Triggering and Decoding
- RTM2052 - RTM-K3 - CAN/LIN Triggering and Decoding
- RTM2052 - RTM-K5 - Audio (I²S, LJ, RJ, TDM) Triggering and Decoding
- RTM2052 - RTM-K6 - MIL-STD-1553 Triggering and Decoding
- RTM2052 - RTM-K7 - ARINC 429 Triggering and Decoding
- RTM2052 - RTM-K15 - History and Segmented Memory
- RTM2052 - RTM-K31 - Power Analysis
- RTM2052 - RTM-K32 - Digital Voltmeter (DVM)
| Model | RTM2052 |
|---|
The Rohde & Schwarz RTM2052 Digital Oscilloscope offers 2 channels with 500 MHz bandwidth, a rise time of 700 ps, and sample rates of up to 5 Gsample/s. It features 8 to 16-bit resolution, 20 Msample memory (460 Msample with K15 option), and a vibrant 8.4″ XGA TFT display. Input impedance is selectable between 50 Ω and 1 MΩ.
It supports 31 automatic measurements, BUS decoding, spectrum analysis, power analysis, and a 16-channel logic analyzer. Connectivity includes USB, LAN, and optional GP-IB interface for flexible integration.
Testwall can supply the used Rohde & Schwarz RTM2052 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM2052 Digital Oscilloscope.
