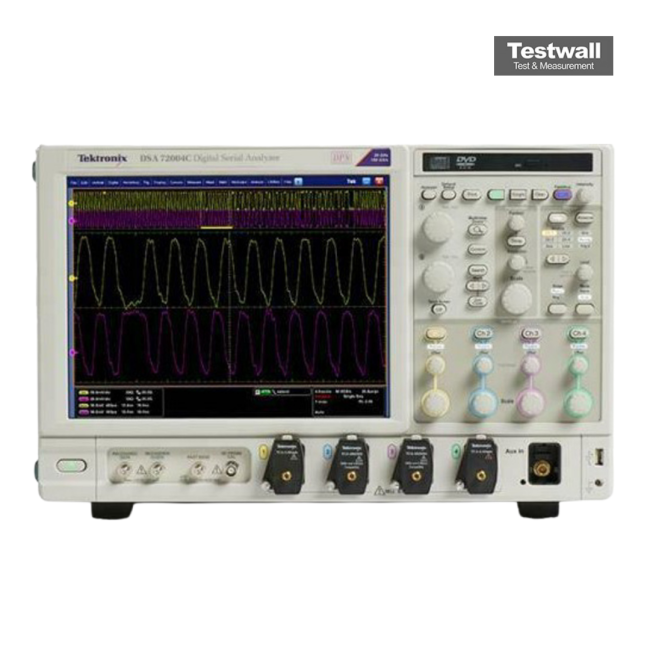

Tektronix DSA72004C
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Sample Rate | 50 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res acquisition mode) |
| Record Length | Up to 250 Mpoints per channel |
| Rise Time | 17.5 ps (typical) |
| Input Impedance | 50 Ω |
| Display | 12.1-inch color TFT LCD touchscreen display |
| Operating System | Windows 7 Professional (64-bit) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
Tektronix DSA72004C Options:
- DSA72004C - A0 - Power Cord, North America
- DSA72004C - A1 - Power Cord, Universal Euro
- DSA72004C - A2 - Power Cord, United Kingdom
- DSA72004C - A3 - Power Cord, Australia
- DSA72004C - A5 - Power Cord, Switzerland
- DSA72004C - A6 - Power Cord, Japan
- DSA72004C - A10 - Power Cord, China
- DSA72004C - A11 - Power Cord, India
- DSA72004C - A99 - No power cord or AC adapter
- DSA72004C - MTH - Communication Mask Testing Software for mask compliance testing
- DSA72004C - PTH - Serial Protocol Trigger Software for high-speed serial or data protocols
- DSA72004C - PTU - Serial Protocol Trigger Software for high-speed serial or data protocols
- DSA72004C - STU - Serial Protocol Trigger Software for high-speed serial or data protocols
- DSA72004C - DDRA - Memory Bus Analysis option for DDR read/write identification
| Model | DSA72004C |
|---|
The Tektronix DSA72004C is a high-performance benchtop oscilloscope from the DPO/DSA/MSO70000 Series, delivering an impressive 20 GHz bandwidth across 4 analog channels. Engineered for speed and accuracy, it operates on a Windows platform, making integration and data handling efficient in advanced testing environments.
Ideal for high-speed signal analysis, this oscilloscope is suited for serial data, jitter, and protocol testing, offering unmatched clarity and real-time insight.
Testwall can supply the used Tektronix DSA72004C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA72004C.
