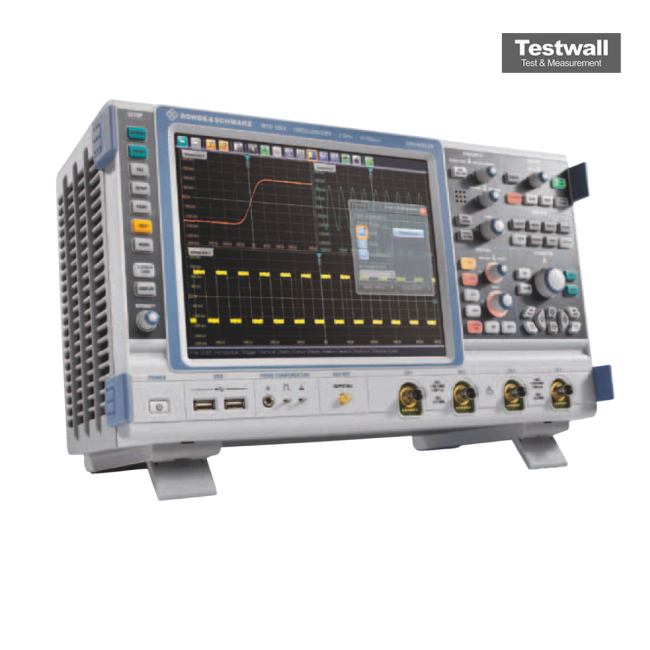

Rohde & Schwarz RTO1024 Digital Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 10 Gsample/s |
| Acquisition Memory Depth | 20 Msample (standard), up to 400 Msample (optional) |
| Vertical Resolution | 8 bit (up to 16 bit with high-resolution mode) |
| Display | 10.4-inch WXGA touchscreen, 1280 x 800 pixels |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Time Base Range | 25 ps/div to 10,000 s/div |
| Connectivity / Interfaces | USB, LAN (Ethernet), GPIB (optional), DisplayPort |
Rohde & Schwarz RTO1024 Digital Oscilloscope Options:
- RTO1024 - B1 - Mixed Signal Option, 400 MHz (additional 16 logic channels)
- RTO1024 - B4 - OCXO 10 MHz (precision reference frequency with reference input and output connectors)
- RTO1024 - B10 - GPIB Interface
- RTO1024 - B18 - Solid State Disk (specify Windows XP embedded or Windows 7 embedded)
- RTO1024 - B19 - Additional Removable Hard Disk
- RTO1024 - B101 - Memory Upgrade, 50 Msample per channel
- RTO1024 - B102 - Memory Upgrade, 100 Msample per channel
- RTO1024 - B103 - Memory Upgrade, 200 Msample per channel (Windows 7 embedded)
- RTO1024 - B104 - Memory Upgrade, 400 Msample per channel (Windows 7 embedded)
- RTO1024 - B200 - Upgrade to 1 GHz bandwidth, incl. calibration
- RTO1024 - B201 - Upgrade to 2 GHz bandwidth, incl. calibration
- RTO1024 - B205 - Upgrade to 4 GHz bandwidth, incl. calibration
- RTO1024 - U1 - Upgrade of operating system from Windows XP embedded to Windows 7 embedded
- RTO1024 - K1 - I2C/SPI Serial Decoding
- RTO1024 - K2 - UART/RS-232/RS-422/RS-485 Serial Decoding
- RTO1024 - K3 - CAN/LIN Serial Triggering and Decoding
- RTO1024 - K4 - FlexRay Serial Triggering and Decoding
- RTO1024 - K5 - I2S Serial Triggering and Decoding
- RTO1024 - K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTO1024 - K7 - ARINC 429 Serial Triggering and Decoding
- RTO1024 - K8 - Ethernet Serial Decoding
- RTO1024 - K9 - CAN FD Serial Triggering and Decoding
- RTO1024 - K11 - I/Q Software Interface
- RTO1024 - K12 - Basic Jitter Analysis
- RTO1024 - K13 - Realtime Clock Data Recovery (CDR)
- RTO1024 - K17 - High Definition Mode
- RTO1024 - K21 - USB 2.0 Compliance Test
- RTO1024 - K22 - Ethernet Compliance Test
- RTO1024 - K23 - Ethernet 10G Compliance Test
- RTO1024 - K24 - BroadR-Reach Compliance Test
- RTO1024 - K26 - D-PHY Compliance Test
- RTO1024 - K31 - Power Analysis
- RTO1024 - K40 - MIPI RFFE Serial Triggering and Decoding
- RTO1024 - K55 - MDIO Serial Triggering and Decoding
- RTO1024 - K60 - USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
| Model | RTO1024 |
|---|
The Rohde & Schwarz RTO1024 is a 4-channel, 2 GHz digital oscilloscope with 10 GSa/s sampling per channel, 175 ps rise time, and input sensitivity from 1 mV/div to 1 V/div (50 Ω) or 10 V/div (1 MΩ). It includes 20/80 Ms memory, expandable to 100/400 Ms, with 1,000,000 waveforms/sec max acquisition rate and a 25 ps/div to 50 s/div time base. Features a large TFT color touchscreen, LAN, 4 USB ports, optional GP-IB, and external trigger.
Perfect for high-speed signal analysis, the RTO1024 ensures accurate waveform capture and detailed resolution across all channels.
Testwall can supply the used Rohde & Schwarz RTO1024 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTO1024 Digital Oscilloscope.
