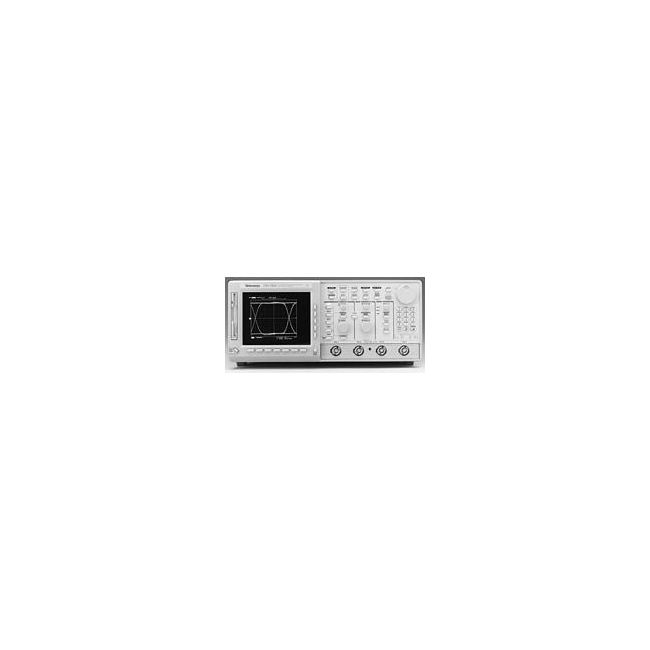

Tektronix TDS500C
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (each channel), 1 GS/s (2 channels) |
| Record Length | Up to 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity/Interfaces | GPIB, RS-232, Centronics parallel port |
Tektronix TDS500C Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS500C - 05 - Video trigger
- TDS500C - 13 - RS-232 and Centronics interfaces
- TDS500C - 1F - Built-in floppy disk drive
- TDS500C - 1M - Long record length
- TDS500C - 2F - Advanced DSP math
- TDS500C - 1R - Rack mount configuration
- TDS500C - 1K - Instrument cart
The Tektronix TDS500C is a digital phosphor oscilloscope supporting 400,000 waveforms per second, featuring a 10.4″ bright screen and 1 GHz bandwidth with 5 GS/s sampling rate, built for high-speed waveform capture.
This compact oscilloscope is ideal for communications design, ensuring rapid event recognition and accurate signal diagnostics in dynamic testing environments.
Testwall can supply the used Tektronix TDS500C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS500C.
