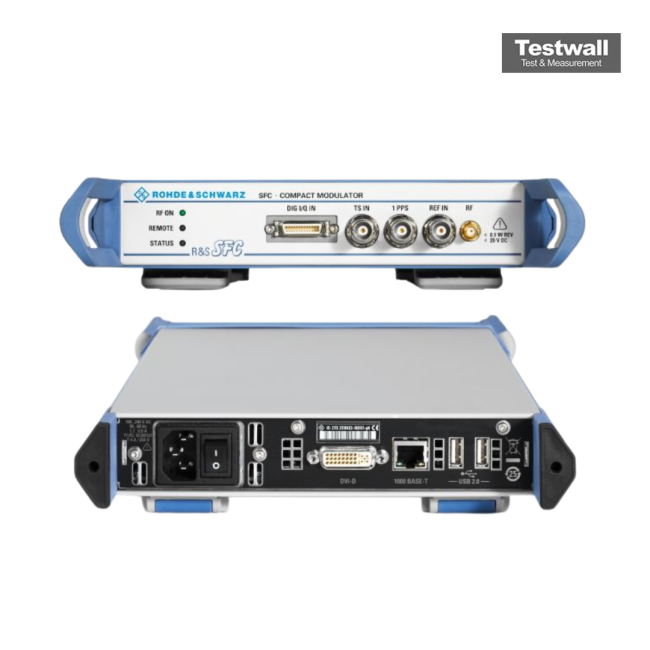

Rohde & Schwarz SFC Compact Modulator
| Attribute | Value |
|---|---|
| Frequency Range | 47 MHz to 862 MHz (VHF/UHF) |
| Output Level Range | -30 dBm to +10 dBm |
| Supported Standards | DVB-T, DVB-C, ATSC, J.83/B, ISDB-T |
| Modulation Types | OFDM, QAM (16, 32, 64, 128, 256), 8-VSB |
| RF Output Connector | 75 Ohm, N-type or F-type connector |
| Transport Stream Input | ASI (DVB Asynchronous Serial Interface), 270 Mbit/s |
| Phase Noise | < -85 dBc/Hz at 10 kHz offset |
| MER (Modulation Error Ratio) | > 40 dB typical |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Operating Temperature | 0 °C to +45 °C |
Rohde & Schwarz SFC Compact Modulator Options:
- SFC - K1 - DVB-T/DVB-H Coder
- SFC - K2 - DVB-C/ISDB-C Coder
- SFC - K3 - DVB-S/DVB-DSNG Coder
- SFC - K4 - ATSC/8VSB Coder
- SFC - K5 - J.83/B Coder
- SFC - K6 - ISDB-T/ISDB-TSB/ISDB-TB Coder
- SFC - K8 - DVB-S2 Coder
- SFC - K9 - DIRECTV Legacy Modulation Coder
- SFC - K10 - MediaFLO™ Coder
- SFC - K11 - T-DMB/DAB Coder
- SFC - K12 - DTMB/DMB-TH Coder
- SFC - K15 - CMMB Coder
- SFC - K16 - DVB-T2 Coder (R&S SFC-B15 option required)
- SFC - K17 - DVB-C2 Coder (R&S SFC-B15 option required)
- SFC - K18 - ATSC-M/H Coder
- SFC - K22 - TRP Player (included in base unit)
- SFC - K23 - Video Generator (included in base unit)
- SFC - K40 - AWGN Generator
- SFC - K80 - Extended I/Q Input
- SFC - K83 - Frequency Extension 3 GHz
- SFC - K84 - Electronic Attenuator 110 dB
- SFC - K170 - FM/RDS Coder
- SFC - K190 - ATV Standard B/G Coder
- SFC - K191 - ATV Standard D/K Coder
- SFC - K192 - ATV Standard I Coder
- SFC - K193 - ATV Standard M/N Coder
- SFC - K194 - ATV Standard L Coder
- SFC - K195 - ATV Multistandard
- SFC - B15 - Coder Extension Board
- SFC-U - PK1 - Terrestrial TV Option Package (includes DVB-T, DVB-H, ISDB-T, ISDB-TB, ISDB-TSB, DTMB, CMMB, ATSC/8VSB, ATSC-M/H, MediaFLO™)
- SFC-U - PK2 - Cable TV Option Package (includes DVB-C, J.83/B, ISDB-C)
- SFC-U - PK3 - Satellite TV Option Package (includes DVB-S2, DVB-S, DIRECTV, frequency extension)
- SFC-U - PK4 - T2/C2 Option Package (includes DVB-T2, DVB-C2)
- SFC-U - PK5 - Audio Broadcasting Option Package (includes DAB, DAB+, T-DMB, FM/RDS)
- SFC-U - PK6 - Analog TV Option Package (includes standards B/G, D/K, I, M/N, L)
- SFC-U - K40 - AWGN Generator
- SFC-U - K80 - Extended I/Q Input
- SFC-U - K83 - Frequency Extension 3 GHz
- SFC-U - K84 - Electronic Attenuator 110 dB
| Model | SFC |
|---|
The Rohde and Schwarz SFC Compact Modulator is a versatile multistandard signal source with high-precision modulation (MER > 40 dB), covering VHF/UHF and optionally up to 3 GHz. It features a level range from 0 dBm to –31.5 dBm (extendable to –110 dBm), and includes a built-in transport stream player, A/V generator, and AWGN generator.
Ideal for standalone operation, the unit’s integrated computer allows real-time encoding of all digital and analog TV/audio broadcasting standards, making it perfect for varied transmission testing setups.
Testwall can supply the used Rohde and Schwarz SFC Compact Modulator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz SFC Compact Modulator.
