Rohde & Schwarz SFE
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Signal Standards Supported | DVB-T, DVB-C, DVB-S, DVB-H, T-DMB, DAB, ATSC, QAM |
| RF Output Level Range | -30 dBm to +13 dBm |
| Level Accuracy | ±1 dB |
| Modulation Bandwidth | Up to 8 MHz |
| Internal Transport Stream Generator | Yes, built-in MPEG-2 transport stream generator |
| Interface Connectivity | USB, LAN (Ethernet), GPIB, RS-232 |
| Display | Built-in color LCD touchscreen display |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
| Operating Temperature Range | 0 °C to +45 °C |
| Model | SFE |
|---|

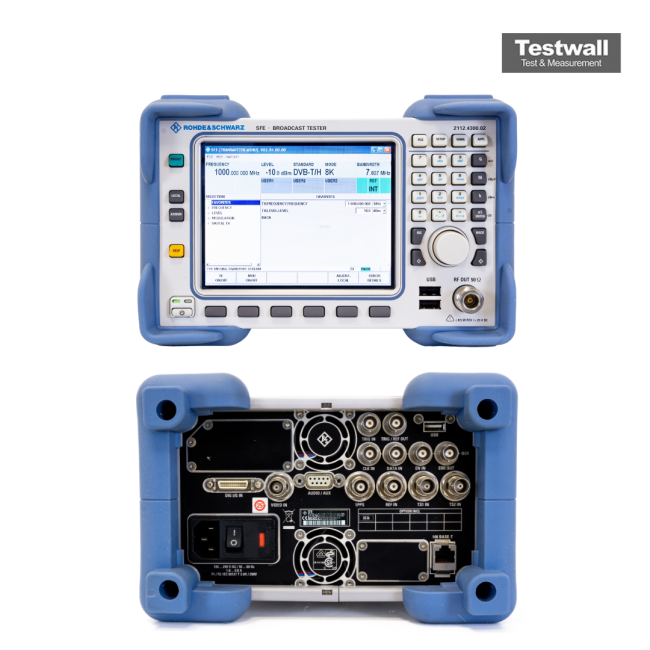

The Rohde & Schwarz SFE Broadcast Tester is a versatile DVB signal generator supporting frequencies from 100 KHz to 2.7 GHz. It accommodates all standard TV formats and several audio broadcast standards. With features like an audio/video generator, large ARB memory, high sample rates, integrated fading simulator, and low phase noise, it is ideal for comprehensive signal testing.
The unit includes an analog TV test pattern library, a wide output level range from -110 to +15 dBm, fast switching times, and remote control via LAN. The LCD color display enhances usability.
Testwall can supply the used Rohde & Schwarz SFE, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SFE.
