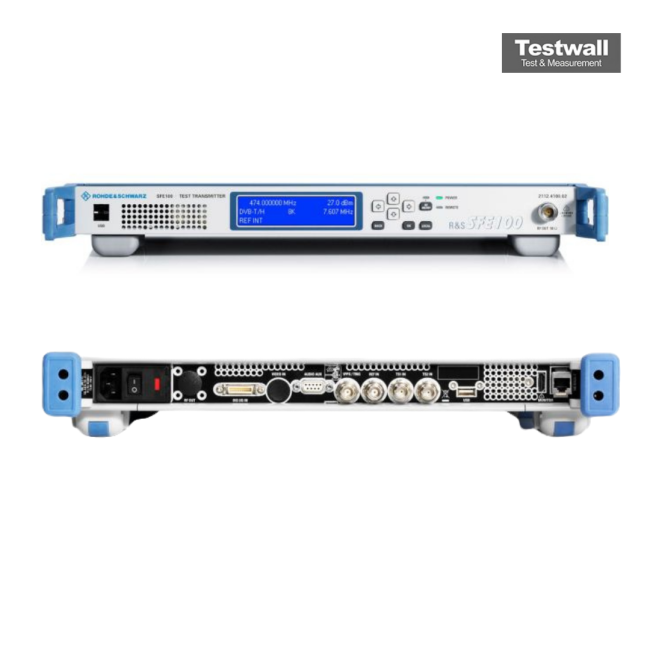

Rohde & Schwarz SFE100
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz |
| Frequency Resolution | 1 Hz |
| Modulation Bandwidth | 35 MHz (I/Q) |
| Timebase Aging | 1 × 10⁻⁹ per day |
| RF Output Connector | Type-N female, front panel |
| Output Power | -110 to +15 dBm (PEP, ≤ 1 GHz), +7 dBm (> 2.5 GHz) |
| SSB Phase Noise | < -95 dBc/Hz at > 1 GHz, 20 kHz offset |
| Modulation | DVB-T/T2/C/C2/S/S2, ATSC, ISDB-T, DTMB, DAB, DRM, AM, FM, I/Q |
| Level Accuracy | < ±1 dB |
| Interfaces | LAN, USB |
| Display | 200 × 64 |
| Dimensions | 427 × 44 × 450 mm |
| Weight | 6 kg |
The Rohde & Schwarz SFE100 is a high-performance multistandard test transmitter covering a frequency range of 100 kHz to 2.7 GHz with 1 Hz resolution. It offers an RF output via N-type female connector with 50 Ω impedance and harmonics level of ≤ 12 dBm, CW < –30 dBc.
Ideal for broadcasting, it supports all common digital and analog TV standards and multiple audio broadcasting formats, making it perfect for production, QA, and development environments.
Testwall can supply the used Rohde & Schwarz SFE100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SFE100.
Options and configurations
- Output Power: -110 to +15 dBm (PEP, ≤ 1 GHz), +7 dBm (> 2.5 GHz); +27 dBm RMS with Opt. B90 (47 to 862 MHz)
- Level Accuracy: < ±1 dB (< ±1.5 dB with Opt. B90)
