Rohde & Schwarz
Rohde & Schwarz SMA100A-B106
6 GHz Analog Signal Generator
9 kHz to 6 GHz (Opt. B106) Frequency Range
0.01 Hz Frequency Resolution
< -30 dBc Harmonics
< 1.5 ms; < 450 µs list mode Switching Speed
Type-N female RF Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz (Opt. B106) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 1.5 ms; < 450 µs list mode |
| RF Output Connector | Type-N female |
| Output Power | -145 to +18 dBm (+15 dBm with Opt. B106), up to +28 dBm high power |
| SSB Phase Noise | < -131 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -136 dBc/Hz with Opt. B22 |
| Modulation | AM, FM, ΦM (Opt. B20/B22), pulse |
| Level Accuracy | < 0.5 dB (100 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -80 dBc (to 1.5 GHz), < -68 dBc (> 3 GHz), offset > 10 kHz |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B22) |
| Interfaces | GPIB, LAN, USB |
| Display | color, 480 × 272 pixels |
| Dimensions | 465 × 108 × 495 mm |
| Weight | 10 kg |

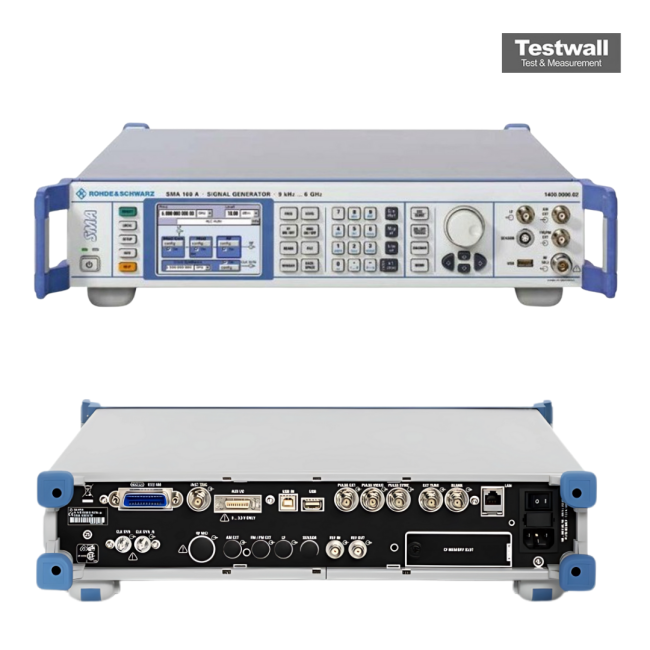

The Rohde & Schwarz SMA100A B106 is a high-end analog signal generator covering 9 kHz to 6 GHz, delivering exceptional signal quality and speed. It supports CW signals and analog modulation types including AM, FM, φM, and pulse, with a low-jitter clock synthesizer for signals up to 1.5 GHz.
Designed for development, production, and maintenance, the SMA100A includes a modern GUI and supports NRP-Zxx sensors for precise power measurement.
Testwall can supply the used Rohde & Schwarz SMA100A B106, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100A B106.
