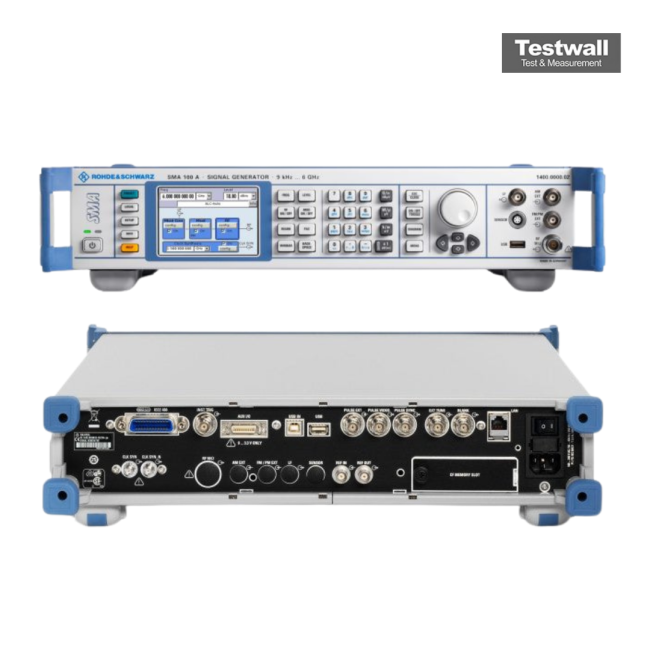

Rohde & Schwarz SMA100A
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 1.5 ms; < 450 µs list mode |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN, USB |
| Frequency Range | 9 kHz to 3 or 6 GHz |
| Output Power | -145 to +18 dBm, up to +28 dBm high power |
| SSB Phase Noise | < -131 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | < 0.5 dB (100 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -80 dBc (to 1.5 GHz), < -68 dBc (> 3 GHz), offset > 10 kHz |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year |
| Display | color, 480 × 272 pixels |
| Dimensions | 465 × 108 × 495 mm |
| Weight | 10 kg |
Available configurations
| Model | Frequency range | Configuration |
| SMA100A-B103 | 9 kHz to 3 GHz | Analog signal generator |
| SMA100A-B106 | 9 kHz to 6 GHz | Analog signal generator |
The Rohde & Schwarz SMA100A RF Signal Generator delivers premium signal integrity across a frequency range of 9 kHz to 3 GHz or 6 GHz, with AM and pulse modulation, optional FM and phase modulation. It features outstanding phase noise performance of –134 dBc at 1 GHz (20 kHz offset), and a powerful RF level range from –145 dBm to +18 dBm. Built-in LF generator and differential clock outputs up to 1.5 GHz enhance flexibility for demanding RF tasks.
Ideal for development, production, and maintenance, the SMA100A generates CW and analog-modulated signals with exceptional precision and modulation diversity.
Testwall can supply the used Rohde & Schwarz SMA100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100A.
Options and configurations
- Frequency Range: 9 kHz to 3 or 6 GHz (Opt. B103/B106)
- Output Power: -145 to +18 dBm (+15 dBm with Opt. B106), up to +28 dBm high power
- SSB Phase Noise: < -131 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -136 dBc/Hz with Opt. B22
- Modulation: AM, FM, ΦM (Opt. B20/B22), pulse
- Timebase Aging: 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B22)
