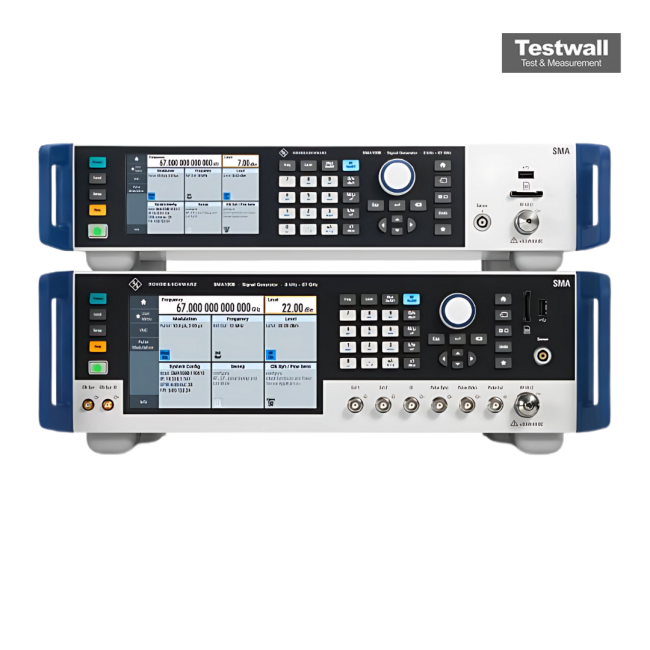

Rohde & Schwarz SMA100B
Signal Generator, 8 kHz up to 67 GHz (Option Dependent)
0.001 Hz Frequency Resolution
8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50 or 67 GHz Frequency Range
+17 dBm at 20 GHz; +13 dBm at 40 GHz; +5 dBm at 67 GHz (depending on configuration) Output Power
< -135 dBc/Hz (-140 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -115 dBc/Hz at 10 GHz SSB Phase Noise
AM, FM, ΦM, pulse (depending on configuration) Modulation
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.001 Hz |
| Frequency Range | 8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50 or 67 GHz |
| Output Power | +17 dBm at 20 GHz; +13 dBm at 40 GHz; +5 dBm at 67 GHz (depending on configuration) |
| SSB Phase Noise | < -135 dBc/Hz (-140 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -115 dBc/Hz at 10 GHz |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | < 0.5 dB (to 3 GHz), < 0.9 dB (to 20 GHz), < 1.0 dB (to 40 GHz), < 2.0 dB (to 67 GHz) |
| Harmonics | < -60 dBc (depending on configuration) |
| Non-Harmonics | < -74 dBc (6 to 12 GHz), < -68 dBc (12 to 24 GHz), offset > 10 kHz |
| Switching Speed | < 2.0 ms (to 20 GHz), < 2.5 ms (to 67 GHz) |
| Sweep Modes | step sweep, ramp sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year |
Available configurations
| Model | Frequency range | Configuration |
| SMA100B-B103 | 8 kHz to 3 GHz | Analog signal generator |
| SMA100B-B106 | 8 kHz to 6 GHz | Analog signal generator |
| SMA100B-B112 | 8 kHz to 12.75 GHz | Analog signal generator |
| SMA100B-B120 | 8 kHz to 20 GHz | Analog signal generator |
| SMA100B-B131 | 8 kHz to 31.8 GHz | Analog signal generator |
| SMA100B-B140 | 8 kHz to 40 GHz | Analog signal generator |
| SMA100B-B150 | 8 kHz to 50 GHz | Analog signal generator |
| SMA100B-B167 | 8 kHz to 67 GHz | Analog signal generator |
Rohde & Schwarz SMA100B Options:
- SMA100B - SMAB-B103 - Frequency option 8 kHz to 3 GHz
- SMA100B - SMAB-B106 - Frequency option 8 kHz to 6 GHz
- SMA100B - SMAB-B112 - Frequency option 8 kHz to 12.75 GHz
- SMA100B - SMAB-B120 - Frequency option 8 kHz to 20 GHz
- SMA100B - SMAB-B92 - Platform height option 2 HU with 5" touch display
- SMA100B - SMAB-B93 - Platform height option 3 HU with 7" touch display
- SMA100B - SMAB-B1H - High performance OCXO reference oscillator
- SMA100B - SMAB-B709 - Low phase noise
- SMA100B - SMAB-B710 - Improved close-in phase noise performance for SMAB-B106/-B112/-B120
- SMA100B - SMAB-B710N - Improved close-in phase noise performance for SMAB-B103
- SMA100B - SMAB-B711 - Ultra low phase noise for SMAB-B106/-B112/-B120
- SMA100B - SMAB-B711N - Ultra low phase noise for SMAB-B103
- SMA100B - SMAB-K703 - 100 MHz, 1 GHz ultra low noise reference input/output
- SMA100B - SMAB-K704 - Flexible reference input from 1 MHz to 100 MHz
- SMA100B - SMAB-K31 - High output power 3 GHz/6 GHz
- SMA100B - SMAB-B32 - Ultra high output power 3 GHz/6 GHz
- SMA100B - SMAB-K33 - High output power 12.75 GHz/20 GHz
- SMA100B - SMAB-B34 - Ultra high output power 12.75 GHz/20 GHz
- SMA100B - SMAB-K22 - High performance pulse modulator
- SMA100B - SMAB-K23 - Pulse generator
- SMA100B - SMAB-K24 - Multifunction generator
- SMA100B - SMAB-K25 - VOR/ILS
- SMA100B - SMAB-K27 - Pulse train
- SMA100B - SMAB-K720 - AM/FM/φM
- SMA100B - SMAB-K721 - Scan AM
- SMA100B - SMAB-B28 - Ramp sweep
- SMA100B - SMAB-K724 - High dynamic uninterrupted level sweep
- SMA100B - SMAB-B29 - Differential clock synthesizer 3 GHz
- SMA100B - SMAB-K722 - Clock synthesizer frequency extension to 6 GHz
- SMA100B - SMAB-K28 - Power analysis
- SMA100B - SMAB-B80 - Rear panel connectors (3 GHz/6 GHz)
- SMA100B - SMAB-B81 - Rear panel connectors (12.75 GHz/20 GHz)
- SMA100B - SMAB-B85 - Removable mass storage
- SMA100B - SMAB-B86 - Remote control GPIB and USB
The Rohde & Schwarz SMA100B RF Signal Generator offers flexible frequency options from 8kHz to 20GHz, covering multiple configurations (3 / 6 / 12.75 / 20GHz). It features low phase noise of -152 dBc at 1 GHz (10 kHz offset), a wide array of modulation capabilities, and high output power for robust signal generation. The advanced touchscreen GUI enhances usability and precision in demanding test setups.
This signal generator is ideal for testing RF components and systems, offering versatile performance with precise signal integrity. Its modular options make it adaptable for lab and production environments.
Testwall can supply the used Rohde & Schwarz SMA100B 8kHz To 3 / 6 / 12.75 / 20GHz RF Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100B 8kHz To 3 / 6 / 12.75 / 20GHz RF Signal Generator.
Options and configurations
- Frequency Range: 8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50 or 67 GHz (Opt. B103/B106/B112/B120/B131/B140/B150/B167)
- Output Power: -145 to +19 dBm (Opt. B103/B106; up to +30 dBm with Opt. K31/B32); +17 dBm at 20 GHz (Opt. B120); +13 dBm at 40 GHz (Opt. B140); +5 dBm at 67 GHz (Opt. B167)
- Modulation: AM, FM, ΦM (Opt. K720), pulse (Opt. K22)
- Harmonics: < -60 dBc (Opt. B103/B106), < -55 dBc (Opt. B112 to B167), > 10 MHz
- Sweep Modes: step sweep, ramp sweep (Opt. B28), power sweep, list mode
- Timebase Aging: 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B1H/B709/B710/B711)
