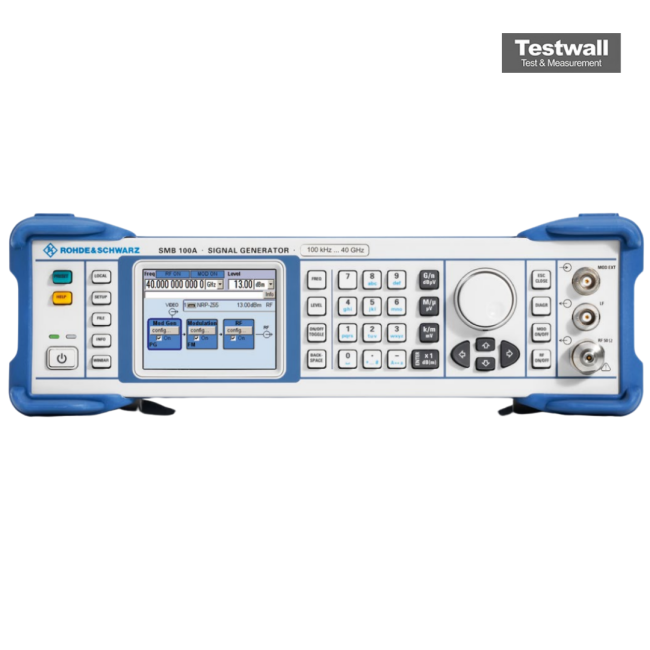

Rohde & Schwarz SMB100A-B140
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 40 GHz |
| Output Power Range | -30 dBm to +15 dBm (typical, frequency dependent) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 1 GHz, 20 kHz offset (typical) |
| Spectral Purity (Harmonics) | < -30 dBc (typical) |
| Modulation Types | AM, FM, PM, Pulse Modulation |
| RF Connector Type | 2.92 mm (K-type) female |
| Reference Frequency | Internal/External 10 MHz reference |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 0 °C to +55 °C |
Rohde & Schwarz SMB100A-B140 Options:
- SMB100A-B140 - SMB-B1 - OCXO Reference Oscillator
- SMB100A-B140 - SMB-B1H - OCXO Reference Oscillator, High Performance
- SMB100A-B140 - SMB-B26 - Harmonic Filter Option, 150 MHz to 40 GHz
- SMB100A-B140 - SMB-B32 - High-Power Option, 50 MHz to 40 GHz
- SMB100A-B140 - SMB-K21 - Pulse Modulator
- SMB100A-B140 - SMB-K23 - Pulse Generator
- SMB100A-B140 - SMB-K27 - Pulse Train (requires SMB-K23; only available for instruments with serial number > 102400)
| Model | SMB100A-B140 |
|---|
The Rohde & Schwarz SMB100A/B140 is a compact RF and microwave signal generator covering frequencies from 100 kHz to 40 GHz. It delivers outstanding performance with a frequency resolution of 0.001 Hz, output levels from -120 to +15 dBm, and ultra-low phase noise (<128 dBc/Hz @1 GHz, 20 kHz offset). It supports LAN, USB, and GP-IB control interfaces, with optional AM, FM, phase, and pulse modulation.
This generator is ideal for a wide range of RF applications requiring precise and stable signal outputs. Optional modulations further extend its versatility for complex testing environments.
Testwall can supply the used Rohde & Schwarz SMB100A/B140, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMB100A/B140.
