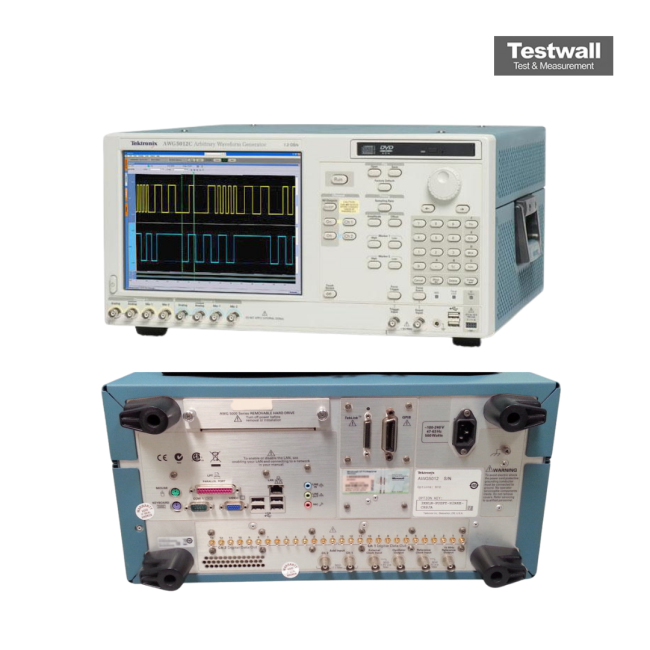

Tektronix AWG5012C
Arbitrary Waveform Generator, 1.2 GS/s, 14 Bit, 2 Ch.
2 analog output channels Number of Channels
Up to 1.2 GS/s Sample Rate
14-bit DAC resolution Vertical Resolution
250 MHz Analog Bandwidth
32 Mpts per channel (standard), expandable to 64 Mpts Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 1.2 GS/s |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 250 MHz |
| Waveform Memory | 32 Mpts per channel (standard), expandable to 64 Mpts |
| Marker Outputs | 2 marker outputs per channel (4 total) |
| Amplitude Range | 50 mVpp to 2 Vpp into 50 Ω load |
| Frequency Range | DC to 250 MHz |
| Sequence Length | Up to 16,383 sequence steps |
| Connectivity/Interface | GPIB, USB, LAN (LXI compliant) |
Tektronix AWG5012C Options:
- AWG5012C - Opt. 01 - Waveform record length expansion (from 16M point to 32M point)
- AWG5012C - Opt. 05 - Removable mechanical HDD (1 TB)
- AWG5012C - Opt. 09 - Sub-sequencing and Dynamic Jump option (sub-sequencing files created for legacy AWG400, AWG500, AWG600, and AWG700 instrument are compatible with this option)
- AWG5012C - Opt. RFX - Adds RFXpress (RFX100) software to the AWG
- AWG5012C - Opt. RDR - Adds radar signal generation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. SPARA - Adds S-parameter emulation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. OFDM - Adds OFDM signal generation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. ENV - Adds environment signal generation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. ENV01 - Bundling option - Opt. ENV + Opt. RDR (Requires Opt. RFX)
- AWG5012C - Opt. ENV02 - Bundling option - Opt. ENV + Opt. RDR + Opt. OFDM (Requires Opt. RFX)
- AWG5012C - Opt. ENV03 - Bundling option - Opt. ENV + Opt. RDR + Opt. OFDM + Opt. SPARA (Requires Opt. RFX)
- AWG5012C - Opt. ENV04 - Bundling option - Opt. ENV + Opt. RDR + Opt. OFDM + Opt. SPARA + Opt. UWBCT (Requires Opt. RFX)
- AWG5012C - Opt. UWBCF - Adds UWB-WiMedia conformance signal generation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. UWBCT - Adds UWB-WiMedia custom and conformance signal generation to RFXpress (Requires Opt. RFX)
- AWG5012C - Opt. 03 - 28-bit digital data outputs (digital data of CH1 and CH2) - Must be ordered at time of purchase
- AWG5012C - Opt. 0309 - Combination of Opt. 03 and Opt. 09 - Must be ordered at time of purchase
- AWG5012C - Opt. A0 - North America power plug (115 V, 60 Hz)
- AWG5012C - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AWG5012C - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AWG5012C - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AWG5012C - Opt. A4 - North America power plug (240 V, 50 Hz)
- AWG5012C - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AWG5012C - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AWG5012C - Opt. A10 - China power plug (50 Hz)
- AWG5012C - Opt. A11 - India power plug (50 Hz)
- AWG5012C - Opt. A99 - No power cord
- AWG5012C - Opt. L0 - English manual
- AWG5012C - Opt. L5 - Japanese manual
- AWG5012C - Opt. L7 - Simplified Chinese manual
- AWG5012C - Opt. L8 - Traditional Chinese manual
- AWG5012C - Opt. L10 - Russian manual
- AWG5012C - Opt. CA1 - Single calibration or functional verification
- AWG5012C - Opt. C3 - Calibration Service 3 Years
- AWG5012C - Opt. C5 - Calibration Service 5 Years
- AWG5012C - Opt. D1 - Calibration Data Report
- AWG5012C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG5012C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG5012C - Opt. R3 - Repair Service 3 Years (including warranty)
- AWG5012C - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | AWG5012C |
|---|
The Tektronix AWG5012C, part of the AWG5000 Series, is a high-performance benchtop waveform generator featuring a minimum frequency of 300 MHz and a maximum frequency of 520 MHz. It offers 12-bit vertical resolution and dual-channel output, providing exceptional signal fidelity and precise waveform replication for complex test applications.
Ideal for advanced research and signal design, the AWG5012C supports arbitrary waveform creation with high timing accuracy and low distortion, making it suitable for RF, communications, and electronic warfare testing.
Testwall can supply the used Tektronix AWG5012C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5012C.
