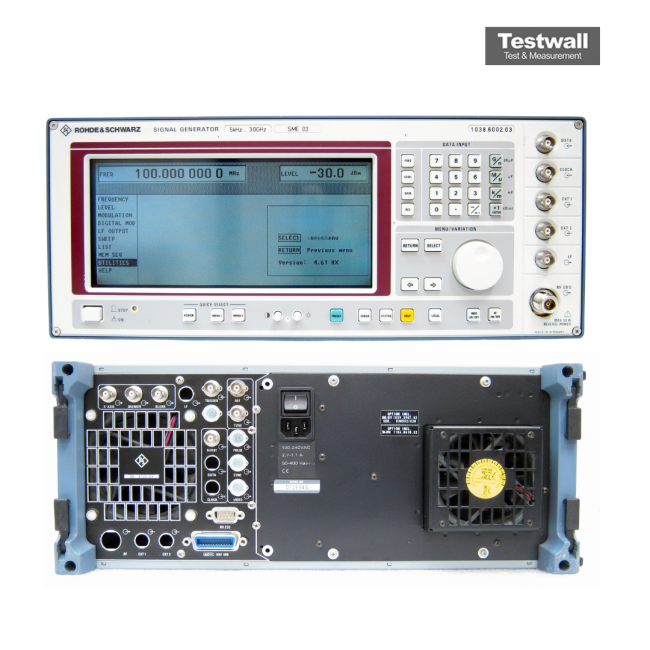

Rohde & Schwarz SME03
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 3 GHz |
| Output Power | -144 to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc |
| Non-Harmonics | < -80 dBc (to 1.5 GHz) |
| SSB Phase Noise | < -126 dBc/Hz at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM, pulse, GMSK, GFSK, FSK, QPSK (depending on configuration) |
| Level Accuracy | ±1 dB (to 1.5 GHz), ±1.5 dB (> 1.5 GHz) |
| Switching Speed | < 10 ms; < 500 µs list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Interfaces | GPIB |
| Dimensions | 435 × 192 × 460 mm |
Rohde & Schwarz SME03 Options:
- SME03 - SM-B1 - Reference Oscillator OCXO: aging <1 x 10⁻⁹/day
- SME03 - SM-B2 - LF Generator: supplies sinewave, noise 0.1 Hz to 500 kHz, triangular, squarewave 0.1 Hz to 50 kHz signals
- SME03 - SM-B8 - Pulse Modulator for SME03: on/off ratio >80 dB, rise/fall time <10 ns
- SME03 - SM-B4 - Pulse Generator: only in conjunction with SM-B3/SM-B8/SM-B9; provides single, delayed and double pulses
- SME03 - SM-B5 - FM/φM Modulator: FM DC to 2 MHz, φM DC to 100 kHz
- SME03 - SM-B6 - Multifunction Generator: produces stereo multiplex and VOR/ILS signals, as well as sinewave, noise 0.1 Hz to 1 MHz, triangular, sawtooth, squarewave 0.1 Hz to 50 kHz signals
- SME03 - SME-B11 - DM Coder: generates FSK, FFSK, 4FSK, GFSK, GMSK, QPSK, π/4 QPSK, π/4 DQPSK, O-QPSK; user-programmable data sequences and PRBS
- SME03 - SME-B12 - DM Memory Extension 8 Mbit: expands the 8-kbit memory of the DM Coder to 8 Mbit (data only); required for fitting SME-B41 and SME-B42
- SME03 - SME-B41 - FLEX Protocol: generates call signals to FLEX standard for testing pagers
- SME03 - SME-B42 - POCSAG Protocol: generates call signals to POCSAG standard for testing pagers
- SME03 - SMT-B19 - Rear Connectors for RF and LF: to replace front-panel connectors
The Rohde & Schwarz SME03 Signal Generator offers a wide frequency range from 5kHz to 3GHz, with amplitude settings from -144dBm to +13dBm. It features digital mobile modulation capabilities, internal modulation generators, and low phase noise for high-precision signal generation in both digital and analog domains.
Designed to meet standards for digital mobile networks, it supports modulation types, data formats, TDMA structures, and frequency hopping. Ideal for development and testing of digital and analog receivers.
Testwall can supply the used Rohde & Schwarz SME03 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SME03 Signal Generator.
Options and configurations
- Modulation: AM, FM, ΦM (Opt. SM-B5), pulse, GMSK, GFSK, FSK, QPSK (Opt. SME-B11)
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁹ per day with Opt. SM-B1)
