Rohde & Schwarz

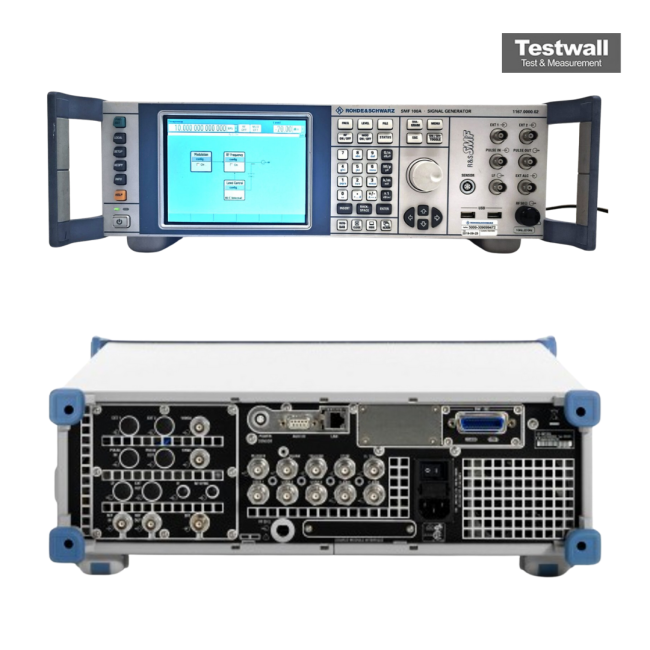

Rohde & Schwarz SMF100A-B122
22 GHz Analog Signal Generator, 3.5 mm(f)
100 kHz to 122 GHz Frequency Range
+17 dBm (typical, frequency dependent) Output Power (Maximum)
-130 dBc/Hz at 1 GHz, 10 kHz offset (typical) Phase Noise
0.001 Hz Frequency Resolution
1.0 mm coaxial connector (W-band) Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 122 GHz |
| Output Power (Maximum) | +17 dBm (typical, frequency dependent) |
| Phase Noise | -130 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Frequency Resolution | 0.001 Hz |
| Output Connector | 1.0 mm coaxial connector (W-band) |
| Modulation Types | AM, FM, PM, pulse modulation |
| Switching Speed | <600 µs (frequency and level switching) |
| Reference Frequency | Internal 10 MHz reference, external reference input supported |
| Spurious Emissions | <-70 dBc (harmonic and non-harmonic, frequency dependent) |
| Interface/Connectivity | LAN (LXI), USB, GPIB (optional), IEC/IEEE bus compatible |
Rohde & Schwarz SMF100A-B122 Options:
- SMF100A-B122 - SMF-B1 - OCXO Reference Oscillator
- SMF100A-B122 - SMF-B20 - AM/FM/φM/LOG AM
- SMF100A-B122 - SMF-B26 - Step Attenuator 22 GHz
- SMF100A-B122 - SMF-B31 - High Output Power
- SMF100A-B122 - SMF-B83 - Removable GPIB
- SMF100A-B122 - SMF-B84 - Removable USB
- SMF100A-B122 - SMF-B85 - Removable Flash Disk
- SMF100A-B122 - SMF-K3 - Narrow Pulse Modulation
- SMF100A-B122 - SMF-K23 - Pulse Generator
| Model | SMF100A-B122 |
|---|
The Rohde & Schwarz SMF100A with SMF-B122 option is a high-performance microwave signal generator offering a frequency range from 1,000 MHz to 22 GHz, 3 channels, and benchtop form factor, engineered for exceptional signal quality and flexibility.
Ideal for R&D, production, and maintenance, this generator provides rapid signal output and unmatched spectral purity in microwave applications.
Testwall can supply the used Rohde & Schwarz SMF100A-B122, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMF100A-B122.
