Rohde & Schwarz SMG
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1000 MHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| Spectral Purity (Phase Noise) | -130 dBc/Hz at 20 kHz offset (typical) |
| Modulation Types | AM, FM, Phase Modulation (PM), Pulse Modulation |
| Output Impedance | 50 Ohm |
| Frequency Accuracy | ±1 ppm (after warm-up) |
| Power Level Accuracy | ±1 dB |
| Operating Temperature Range | 0°C to 55°C |
| Interface / Remote Control | GPIB (IEEE 488), RS-232 |
| Model | SMG |
|---|

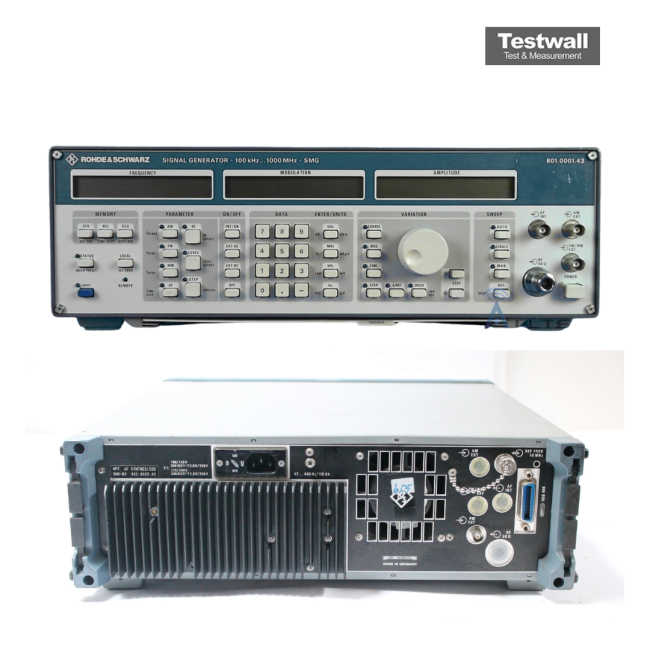

The Rohde & Schwarz SMG Signal Generator offers a frequency range from 100kHz to 1GHz with 1Hz resolution. It features a level range from -140dBm to +13dBm and an impressive SSB phase noise of 124dBc/Hz at 20kHz offset from a 1GHz carrier. Built-in AM, FM, phase, and pulse modulation capabilities enhance RF signal generation.
Ideal for testing and development, the SMG provides precise RF digit output and versatile modulation options for comprehensive signal simulation.
Testwall can supply the used Rohde & Schwarz SMG, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMG.
