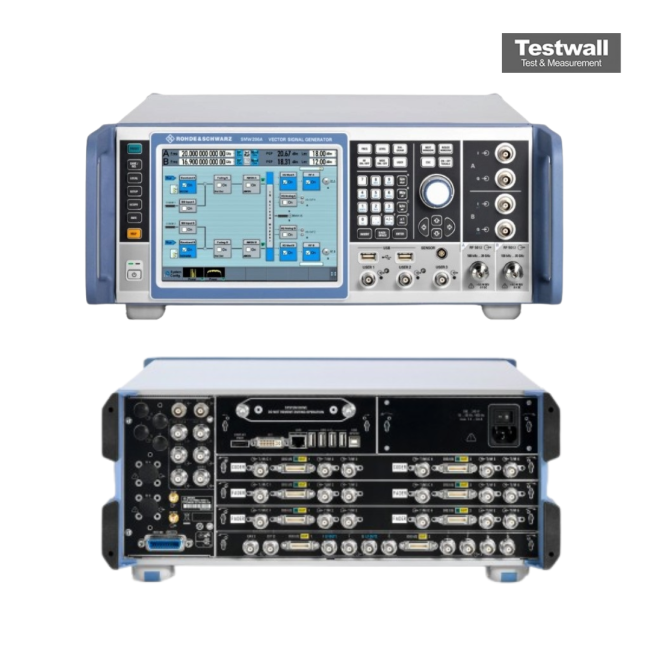

Rohde & Schwarz SMW200A
3GHz Vector Signal Generator
AM, FM, ΦM, pulse, I/Q, AWGN Modulation
0.001 Hz Frequency Resolution
100 kHz to 3, 6, 7.5, 12.75, 20, 31.8, 40, 44, 56 or 67 GHz (path A); 100 kHz to 3, 6, 7.5, 12.75, 20, 31.8 or 44 GHz Frequency Range
-120 to +18 dBm (PEP, spec., 3 MHz to 20 GHz); setting range -145 to +30 dBm Output Power
-134 dBc/Hz at 1 GHz, 20 kHz offset (spec.), -140 dBc/Hz (typ.) SSB Phase Noise
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse, I/Q, AWGN |
| Frequency Resolution | 0.001 Hz |
| Frequency Range | 100 kHz to 3, 6, 7.5, 12.75, 20, 31.8, 40, 44, 56 or 67 GHz (path A); 100 kHz to 3, 6, 7.5, 12.75, 20, 31.8 or 44 GHz |
| Output Power | -120 to +18 dBm (PEP, spec., 3 MHz to 20 GHz); setting range -145 to +30 dBm |
| SSB Phase Noise | -134 dBc/Hz at 1 GHz, 20 kHz offset (spec.), -140 dBc/Hz (typ.) |
| Level Accuracy | < 0.5 dB (100 kHz to 3 GHz), < 0.7 dB (3 to 6 GHz), < 0.9 dB (6 to 20 GHz) |
| Harmonics | < -30 dBc (f ≤ 3.5 GHz), < -55 dBc (f > 3.5 GHz) |
| Non-Harmonics | < -79 dBc (1.5 to 3 GHz), < -73 dBc (3 to 6 GHz) |
| Switching Speed | < 1.2 ms, < 1.4 ms (to 20 GHz) |
| Modulation Bandwidth | up to 2 GHz |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁷ per year (standard), 3 × 10⁻⁸ per year |
Available configurations
| Model | Frequency range | Configuration |
| SMW200A-B103 | 100 kHz to 3 GHz | Vector signal generator |
| SMW200A-B106-B206 | 100 kHz to 6 GHz | Vector signal generator + 2nd RF path |
| SMW200A-B106 | 100 kHz to 6 GHz | Vector signal generator |
| SMW200A-B1012 | 100 kHz to 12.75 GHz | Vector signal generator |
| SMW200A-B120-B220 | 100 kHz to 20 GHz | Vector signal generator + 2nd RF path |
| SMW200A-B1020 | 100 kHz to 20 GHz | Vector signal generator |
| SMW200A-B1031 | 100 kHz to 31.8 GHz | Vector signal generator |
| SMW200A-B1040 | 100 kHz to 40 GHz | Vector signal generator |
| SMW200A-B1044 | 100 kHz to 44 GHz | Vector signal generator |
| SMW200A-B1056 | 100 kHz to 56 GHz | Vector signal generator |
| SMW200A-B1067 | 100 kHz to 67 GHz | Vector signal generator |
Rohde & Schwarz SMW200A Options:
- SMW200A - B103 - Frequency Option RF Path A, 100 kHz to 3 GHz
- SMW200A - B106 - Frequency Option RF Path A, 100 kHz to 6 GHz
- SMW200A - B112 - Frequency Option RF Path A, 100 kHz to 12.75 GHz
- SMW200A - B120 - Frequency Option RF Path A, 100 kHz to 20 GHz
- SMW200A - B131 - Frequency Option RF Path A, 100 kHz to 31.8 GHz
- SMW200A - B140 - Frequency Option RF Path A, 100 kHz to 40 GHz
- SMW200A - B140N - Frequency Option RF Path A, 100 kHz to 40 GHz, I/Q modulation bandwidth and minimum pulse width limited
- SMW200A - B13 - Signal Routing and Baseband Main Module, one I/Q path to RF
- SMW200A - B13T - Signal Routing and Baseband Main Module, two I/Q paths to RF
- SMW200A - B13XT - Wideband Baseband Main Module, two I/Q paths to RF
- SMW200A - B203 - Frequency Option RF Path B, 100 kHz to 3 GHz
- SMW200A - B206 - Frequency Option RF Path B, 100 kHz to 6 GHz
- SMW200A - B212 - Frequency Option RF Path B, 100 kHz to 12.75 GHz
- SMW200A - B220 - Frequency Option RF Path B, 100 kHz to 20 GHz
- SMW200A - B20 - FM/φM Modulator
- SMW200A - B22 - Enhanced Phase Noise Performance and FM/φM Modulator
- SMW200A - B90 - Phase Coherence
- SMW200A - K22 - Pulse Modulator
- SMW200A - K23 - Pulse Generator
- SMW200A - K24 - Multifunction Generator
- SMW200A - K739 - Differential Analog I/Q Inputs
- SMW200A - B10 - Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime), 120 MHz RF bandwidth
- SMW200A - K16 - Differential Analog I/Q Outputs
- SMW200A - K18 - Digital Baseband Output
- SMW200A - K501 - Extended Sequencing
- SMW200A - K511 - ARB Memory Extension to 512 Msample
- SMW200A - K512 - ARB Memory Extension to 1 Gsample
- SMW200A - K522 - Baseband Extension to 160 MHz RF bandwidth
- SMW200A - K551 - Slow I/Q
- SMW200A - B9 - Wideband Baseband Generator with ARB (256 Msample), 500 MHz RF bandwidth
- SMW200A - K17 - Wideband Differential Analog I/Q Outputs
- SMW200A - K515 - ARB Memory Extension to 2 Gsample
- SMW200A - K526 - Baseband Extension to 2000 MHz RF bandwidth
- SMW200A - K62 - Additive White Gaussian Noise (AWGN)
- SMW200A - K540 - Envelope Tracking
- SMW200A - K541 - AM/AM, AM/φM Predistortion
- SMW200A - B14 - Fading Simulator
- SMW200A - K71 - Dynamic Fading
- SMW200A - K72 - Enhanced Fading Models
- SMW200A - K73 - OTA-MIMO Fading Enhancements
- SMW200A - K74 - MIMO Fading/Routing
- SMW200A - K75 - Higher-Order MIMO
- SMW200A - K76 - Multiple Entities
- SMW200A - K78 - Radar Echo Generation
- SMW200A - K550 - Stream Extender
- SMW200A - K820 - Customized Dynamic Fading
- SMW200A - K40 - GSM/EDGE
- SMW200A - K41 - EDGE Evolution
- SMW200A - K42 - 3GPP FDD
- SMW200A - K46 - CDMA2000®
- SMW200A - K47 - 1xEV-DO
- SMW200A - K49 - IEEE 802.16
- SMW200A - K50 - TD-SCDMA
- SMW200A - K51 - TD-SCDMA Enhanced BS/MS Tests
- SMW200A - K52 - DVB-H/DVB-T
- SMW200A - K54 - IEEE 802.11 (a/b/g/n)
- SMW200A - K55 - EUTRA/LTE
- SMW200A - K60 - Bluetooth® EDR
- SMW200A - K61 - Multicarrier CW Signal Generation
- SMW200A - K68 - TETRA Release 2
- SMW200A - K69 - LTE Closed-Loop BS Test
- SMW200A - K81 - LTE Log File Generation
- SMW200A - K83 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests
- SMW200A - K84 - EUTRA/LTE Release 9 and Enhanced Features
- SMW200A - K85 - EUTRA/LTE Release 10 (LTE-Advanced)
- SMW200A - K86 - IEEE 802.11ac
- SMW200A - K87 - 1xEV-DO Rev. B
- SMW200A - K89 - NFC A/B/F
- SMW200A - K112 - LTE Release 11 and Enhanced Features
- SMW200A - K113 - LTE Release 12
- SMW200A - K114 - 5G Air Interface Candidates
- SMW200A - K115 - Cellular IoT
- SMW200A - K116 - DVB-S2/DVB-S2X
- SMW200A - K141 - IEEE 802.11ad
- SMW200A - K542 - Baseband Power Sweep
- SMW200A - K240 - GSM/EDGE (R&S WinIQSIM2)
- SMW200A - K241 - EDGE Evolution (R&S WinIQSIM2)
- SMW200A - K242 - 3GPP FDD (R&S WinIQSIM2)
- SMW200A - K244 - GPS 1 Satellite (R&S WinIQSIM2)
- SMW200A - K246 - CDMA2000® (R&S WinIQSIM2)
- SMW200A - K247 - 1xEV-DO (R&S WinIQSIM2)
- SMW200A - K249 - IEEE 802.16 (R&S WinIQSIM2)
- SMW200A - K250 - TD-SCDMA (R&S WinIQSIM2)
- SMW200A - K251 - TD-SCDMA Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A - K252 - DVB-H/DVB-T (R&S WinIQSIM2)
- SMW200A - K253 - DAB/T-DMB (R&S WinIQSIM2)
- SMW200A - K254 - IEEE 802.11n (R&S WinIQSIM2)
- SMW200A - K255 - EUTRA/LTE (R&S WinIQSIM2)
- SMW200A - K260 - Bluetooth® EDR (R&S WinIQSIM2)
- SMW200A - K261 - Multicarrier CW Signal Generation (R&S WinIQSIM2)
- SMW200A - K262 - Additive White Gaussian Noise AWGN (R&S WinIQSIM2)
- SMW200A - K266 - Galileo 1 Satellite (R&S WinIQSIM2)
- SMW200A - K268 - TETRA Release 2 (R&S WinIQSIM2)
- SMW200A - K283 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A - K284 - EUTRA/LTE Release 9 and Enhanced Features (R&S WinIQSIM2)
- SMW200A - K285 - EUTRA/LTE Release 10 (LTE-Advanced) (R&S WinIQSIM2)
- SMW200A - K286 - IEEE 802.11ac (R&S WinIQSIM2)
- SMW200A - K287 - 1xEV-DO Rev. B (R&S WinIQSIM2)
- SMW200A - K289 - NFC A/B/F (R&S WinIQSIM2)
- SMW200A - K294 - Glonass 1 Satellite (R&S WinIQSIM2)
- SMW200A - K407 - Beidou 1 Satellite (R&S WinIQSIM2)
- SMW200A - K412 - LTE Release 11 and Enhanced Features (R&S WinIQSIM2)
- SMW200A - K413 - EUTRA/LTE Release 12 (R&S WinIQSIM2)
- SMW200A - K441 - IEEE 802.11ad (R&S WinIQSIM2)
- SMW200A - K300 - Pulse Sequencing
- SMW200A - K301 - Enhanced Pulse Sequencing
- SMW200A - K308 - Direction Finding
- SMW200A - K350 - DFS Signal Generation
- SMW200A - B81 - Rear Panel Connectors for RF path A (3/6 GHz) and I/Q
- SMW200A - B82 - Rear Panel Connectors for RF path B (3/6 GHz)
- SMW200A - B83 - Rear Panel Connectors for RF path A (20/31.8/40 GHz) and I/Q
- SMW200A - B84 - Rear Panel Connectors for RF path B (20 GHz)
- SMW200A - B93 - Solid State Drive
The Rohde & Schwarz SMW200A is a high-end vector signal generator designed for complex, digitally modulated signals. Featuring I/Q modulation bandwidth up to 160 MHz, dual RF paths (3, 6, or 20 GHz), and modular architecture, it enables advanced testing in LTE-Advanced, IEEE 802.11ac, MIMO 8x2, and 5G environments.
This device is ideal for developing wideband communications, validating 4G/5G base stations, and supporting aerospace/defense systems. Its scalability and connectivity offer exceptional versatility.
Testwall can supply the used Rohde & Schwarz SMW200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMW200A.
Options and configurations
- Frequency Range: 100 kHz to 3, 6, 7.5, 12.75, 20, 31.8, 40, 44, 56 or 67 GHz (path A); 100 kHz to 3, 6, 7.5, 12.75, 20, 31.8 or 44 GHz (path B, Opt.)
- Switching Speed: < 1.2 ms (3/6 GHz Opt.), < 1.4 ms (to 20 GHz)
- Modulation Bandwidth: up to 2 GHz (internal baseband with Opt. K525/K527)
- Timebase Aging: 1 × 10⁻⁷ per year (standard), 3 × 10⁻⁸ per year (Opt. B709/B710/B711)
