Rohde & Schwarz SMH
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2 GHz |
| Output Power | -140 to +13 dBm |
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±1.5 dB |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -118 dBc/Hz at 2 GHz, 20 kHz offset (typ.) |
| Harmonics | < -30 dBc |
| Non-Harmonics | < -64 to -80 dBc, offset > 5 kHz |
| Switching Speed | < 15 ms |
| Sweep Modes | step sweep |
| Timebase Aging | 10 MHz, < 1 × 10⁻⁹ per day |
| Interfaces | GPIB |
| Dimensions | 435 × 147 × 460 mm |
| Weight | 17 kg |

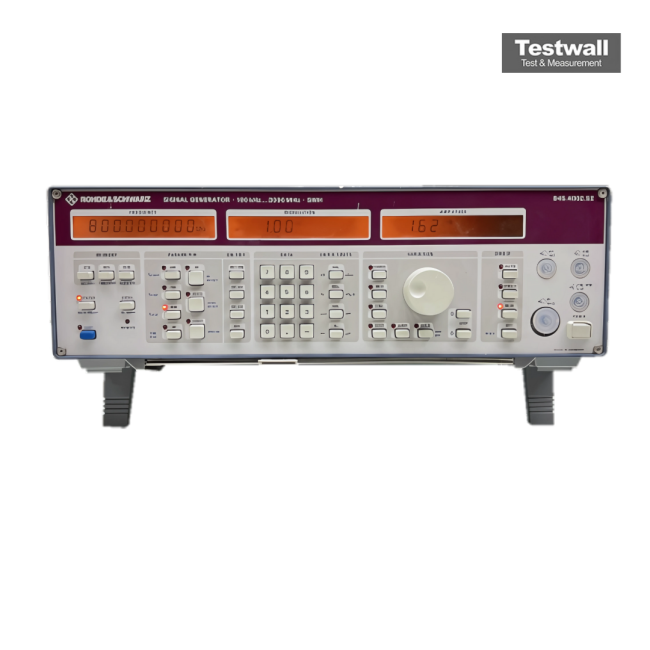

The Rohde & Schwarz SMH Signal Generator operates across a frequency range of 10 kHz to 2 GHz with an output range from +13 dBm to -140 dBm and a resolution of 1 Hz. It features RF immunity up to 2.4 GHz, <15 mS frequency setting time, and supports AM, FM, AC, FM DC, phase, and pulse modulation. Integrated modulation generator includes 8 fixed frequencies.
Ideal for RF and AF sweep applications, the SMH provides precise modulation and output control without level transients. It supports various modulation types for versatile testing environments.
Testwall can supply the used Rohde & Schwarz SMH Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMH Signal Generator.
