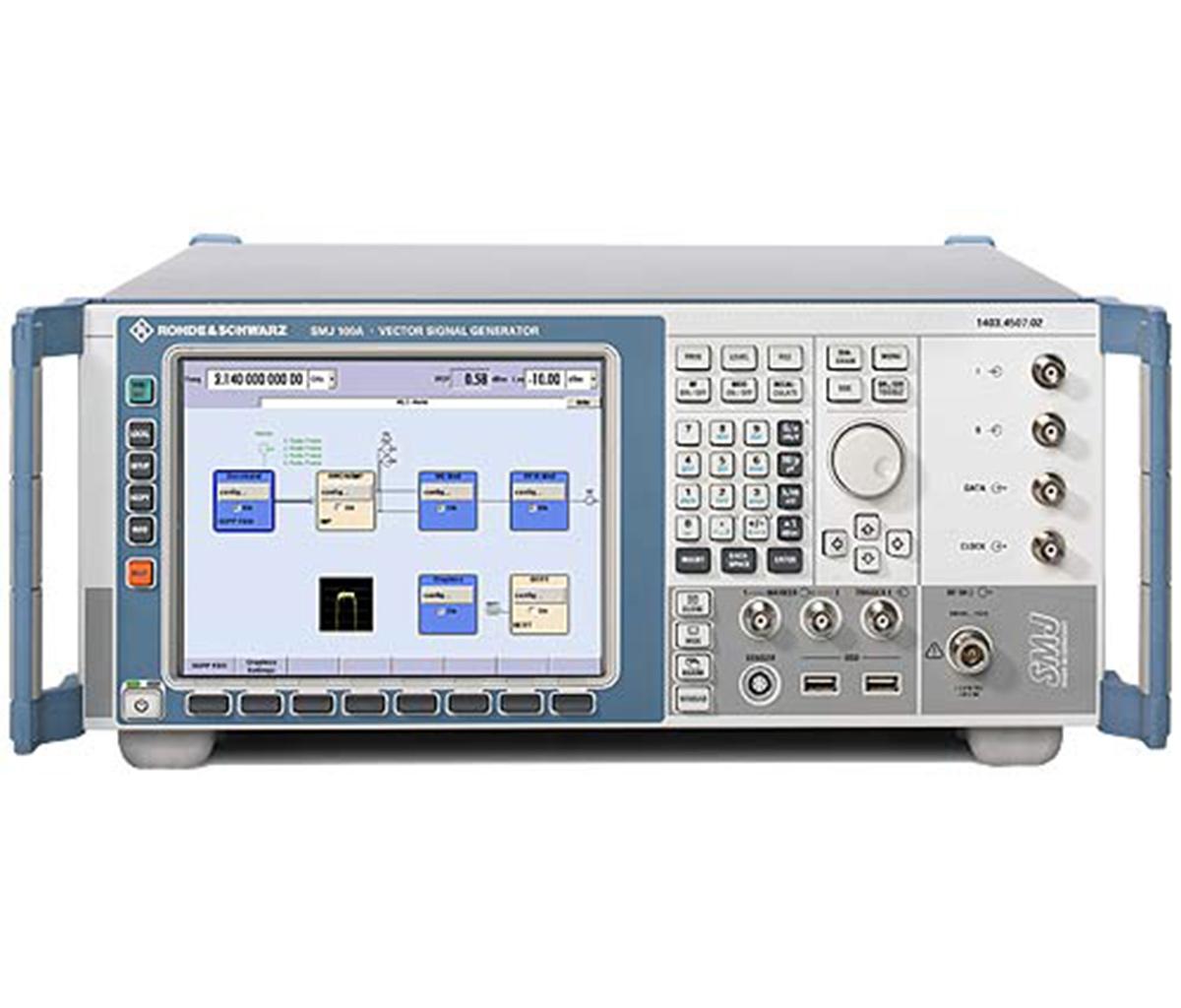

Rohde & Schwarz SMJ100A-B103
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz (Opt. B103) |
| Modulation | AM, FM, ΦM (Opt.), I/Q, pulse |
| Frequency Resolution | 0.01 Hz |
| Interfaces | GPIB, LAN, USB |
| Display | color, 800 × 600 |
| Output Power | -145 to +13 dBm (PEP, ≤ 3 GHz), +11 dBm (> 3 GHz) |
| SSB Phase Noise | < -129 dBc/Hz at 1 GHz, 20 kHz offset (-133 typ.) |
| Level Accuracy | < 0.5 dB (1 MHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Switching Speed | < 2 ms (1.5 ms typ.); < 450 µs list mode |
| Modulation Bandwidth | 200 MHz RF bandwidth (external I/Q), 40 MHz internal baseband |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁷ per year, 1 × 10⁻⁹ per day |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 18 kg |
Rohde & Schwarz SMJ100A-B106 6 GHz Vector Signal Generator, Type N (f) Options:
- SMJ100A - SMJ-B10 - Baseband Generator
- SMJ100A - SMJ-B11 - Baseband Generator
- SMJ100A - SMJ-B13 - Baseband Main Modul
- SMJ100A - SMJ-B16 - Differential I/Q Output
- SMJ100A - SMJ-B81 - Rear Connectors
- SMJ100A - SMJ-B103 - Frequency Range 100 kHz – 3 GHz
- SMJ100A - SMJ-B106 - Frequency Range 100 kHz – 6 GHz
- SMJ100A - SMJ-Z5 - Adapter of the AUX I/O interface to coaxial BNC connectors
The Rohde & Schwarz SMJ100A Vector Signal Generator offers frequencies from 100 kHz to 3 GHz with exceptional ACLR performance and an I/Q modulator with 200 MHz RF bandwidth. Its advanced baseband generator enables realtime signal generation and waveform playback, enhanced by a graphical signal flow interface and intuitive GUI. High-speed settings (as low as 450 µs in List mode), extensive digital standard support, and high-stability oscillators make it ideal for development and production.
Use the SMJ100A for 3GPP, GSM/EDGE, LTE, WLAN testing with high repeatability and flexibility. Enjoy color display, tooltips, GPIB/LAN connectivity, and realtime 3GPP support.

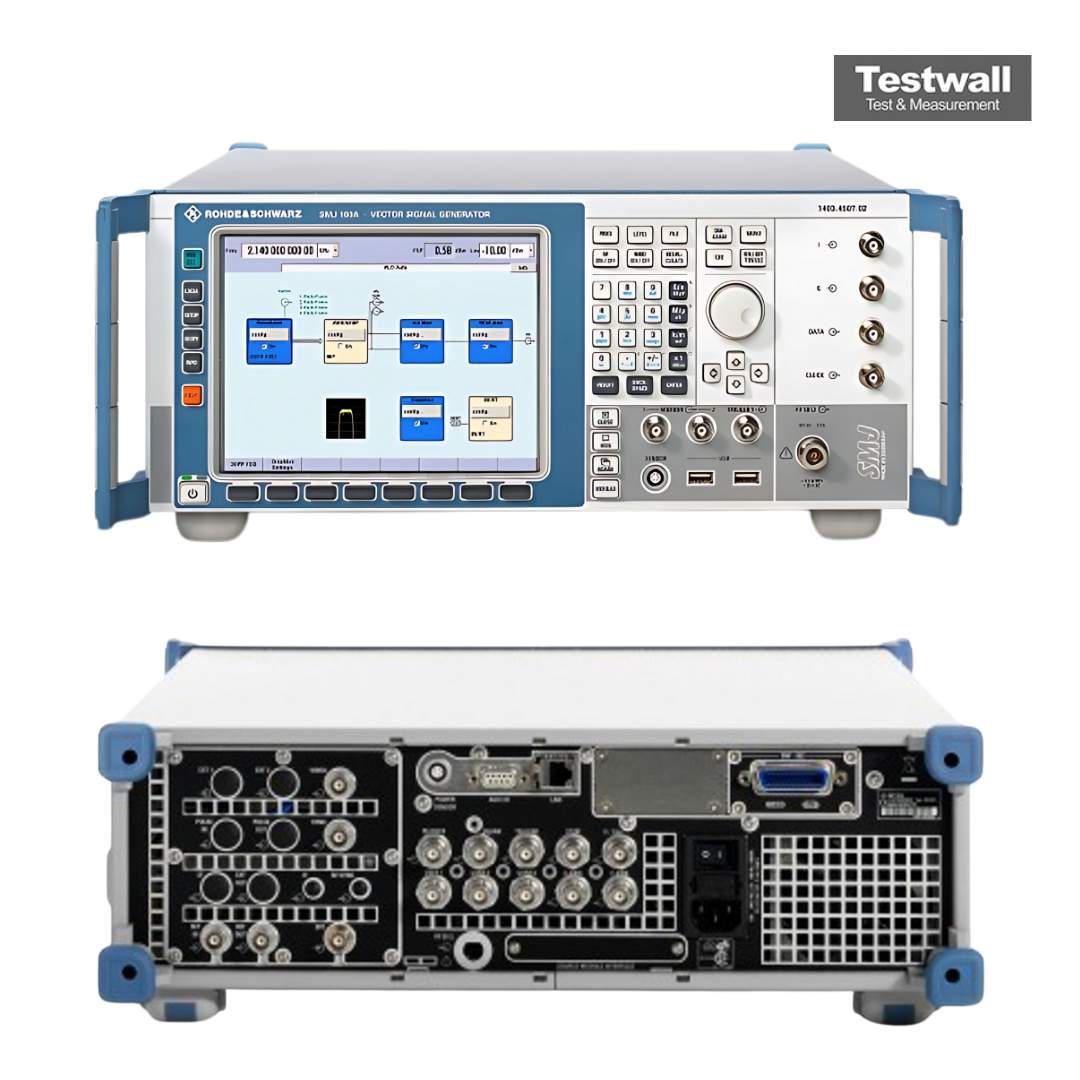

Testwall can supply the used Rohde & Schwarz SMJ100A Vector Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMJ100A Vector Signal Generator.
