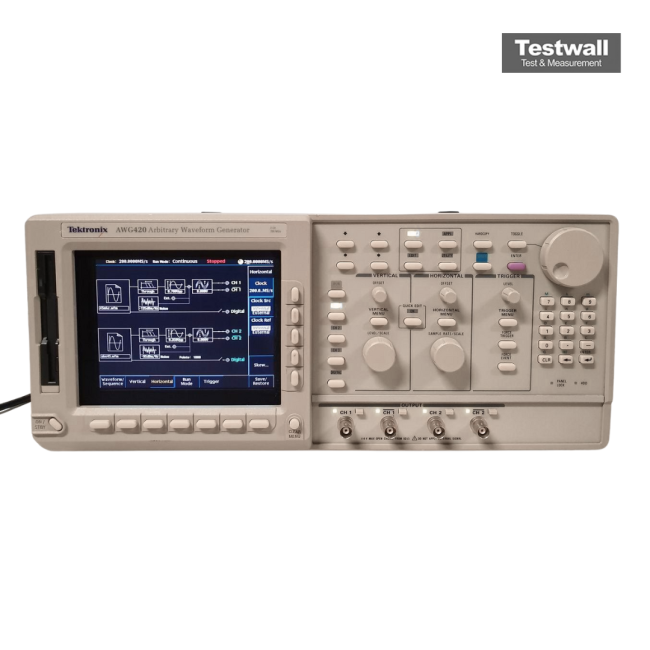

Tektronix AWG420
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 200 MS/s per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Memory Depth | Up to 4 Megasamples per channel (optional 16 Megasamples) |
| Output Amplitude | 20 mV to 2 V peak-to-peak into 50 Ω |
| Frequency Range | DC to 80 MHz analog bandwidth |
| Waveform Types | Arbitrary, sine, square, triangle, ramp, pulse, noise, DC, and user-defined waveforms |
| Output Impedance | 50 Ω nominal |
| Clock Reference | Internal or external clock reference; external reference input 10 MHz |
| Interface & Connectivity | GPIB (IEEE 488.2) interface for remote control and programmability |
Tektronix AWG420 Options:
- AWG420 - Opt. 01 - 16 M point waveform memory
- AWG420 - Opt. 03 - CMOS Digital Data Outputs 16/32/48-Bit (number of digital output bits depends on AWG400 model)
- AWG420 - Opt. 05 - Single-ended output (Alternative for standard complementary output)
- AWG420 - Opt. 10 - 128 MB Flash disk and standby switch (Alternative for standard hard disk drive)
- AWG420 - Opt. 1R - Rackmount
- AWG420 - Opt. C3 - Three years of Calibration Services
- AWG420 - Opt. D1 - Calibration data certificate
- AWG420 - Opt. D3 - Test data; requires C3
- AWG420 - Opt. R3 - Repair warranty extended to cover three years
- AWG420 - Opt. A1 - Universal Euro 220 V, 50 Hz power cord
- AWG420 - Opt. A12 - United Kingdom 240 V, 50 Hz power cord
- AWG420 - Opt. A3 - Australian 240 V, 50 Hz power cord
- AWG420 - Opt. A5 - Switzerland 220 V, 50 Hz power cord
- AWG420 - Opt. A99 - No power cable
- AWG420 - Opt. AC - China power cord
| Model | AWG420 |
|---|
The Tektronix AWG420 Arbitrary Waveform Generator offers dual independent channels, 16-bit resolution, and a 200 MS/s sample rate, with optional 16 M record length. It features digital data generation up to 48-bit, six marker outputs, and supports external clock and signal inputs.
Designed for testing complex analog/digital systems, it excels in creating modulated I&Q signals, testing imaging devices, and validating network communication protocols like SONET, Fibre Channel, and 100Base-TX.
Testwall can supply the used Tektronix AWG420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG420.
