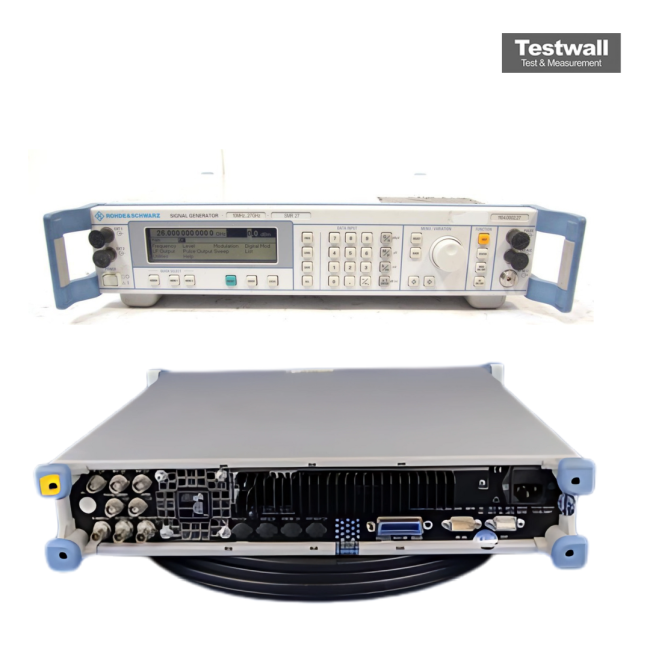

Rohde & Schwarz SMR27
| Attribute | Value |
|---|---|
| Modulation | pulse |
| Frequency Resolution | 1 kHz |
| Switching Speed | < 10 ms + 2 ms/GHz |
| Interfaces | GPIB |
| Frequency Range | 1 to 27 GHz |
| Output Power | -20 to +8 dBm; +11 dBm at 20 to 27 GHz |
| SSB Phase Noise | < -83 dBc/Hz at 10 GHz, 10 kHz offset |
| Level Accuracy | < 1 dB (to 20 GHz), < 1.4 dB (> 20 GHz) at 0 dBm |
| Harmonics | < -55 dBc (to 20 GHz), < -40 dBc (> 20 GHz) |
| Non-Harmonics | < -60 dBc (to 20 GHz), < -54 dBc (> 20 GHz) |
| Sweep Modes | step sweep, ramp sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
Rohde & Schwarz SMR27 Options:
- SMR27 - SMR-B1 - OCXO Reference Oscillator
- SMR27 - SMR-B3 - Frequency Resolution 0.1 Hz
- SMR27 - SMR-B4 - Ramp Sweep
- SMR27 - SMR-B5 - AM/FM/Scan Modulator
- SMR27 - SMR-B11 - Frequency Extension 0.01 GHz to 1 GHz
- SMR27 - SMR-B14 - Pulse Generator
- SMR27 - SMR-B15 - RF Attenuator for SMR20/27
- SMR27 - SMR-B20 - Rear Connectors for RF, AF (SMR27/30/40)
- SMR27 - SMR-B24 - IF Input DC to 700 MHz (SMR27/30/40)
- SMR27 - SMR-B31 - Low Leakage
The Rohde & Schwarz SMR27 is a high-performance 27 GHz Microwave Signal Generator offering a frequency range from 1 GHz (expandable to 10 MHz with option) to 27 GHz. It ensures excellent spectral purity and stable output, incorporating pulse modulation, output attenuator, and a wide dynamic range from -130 dBm to +10 dBm. It also features GP-IB interface for precise integration.
Ideal for advanced microwave testing applications, the SMR27 delivers high stability and control for demanding laboratory or field environments.
Testwall can supply the used Rohde & Schwarz SMR27, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMR27.
Options and configurations
- Modulation: pulse (AM, FM with Opt. B5)
- Frequency Resolution: 1 kHz (0.1 Hz with Opt. B3)
- Frequency Range: 1 to 27 GHz (10 MHz to 27 GHz with Opt. B11)
- Output Power: -20 to +8 dBm (-130 dBm with Opt. B15/B17); +11 dBm at 20 to 27 GHz
- Sweep Modes: step sweep, ramp sweep (Opt. B4), power sweep, list mode
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. B1)
