Rohde & Schwarz SMU200A-B103
100kHz to 3GHz Vector Signal Generator
Baseband Generator with ARB and Digital Modulation Option Type
Rohde & Schwarz SMU200A Vector Signal Generator Compatible Instrument
64 Msample (per channel) ARB Memory Depth
Up to 300 MHz Sample Rate
Up to 120 MHz RF bandwidth Modulation Bandwidth
| Attribute | Value |
|---|---|
| Option Type | Baseband Generator with ARB and Digital Modulation |
| Compatible Instrument | Rohde & Schwarz SMU200A Vector Signal Generator |
| ARB Memory Depth | 64 Msample (per channel) |
| Sample Rate | Up to 300 MHz |
| Modulation Bandwidth | Up to 120 MHz RF bandwidth |
| Supported Standards | GSM/EDGE, WCDMA, LTE, WiMAX, WLAN, and custom digital modulation formats |
| Digital Modulation Types | BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 256QAM, and custom formats |
| I/Q Output | Analog I/Q outputs available for external modulation use |
| AWGN Capability | Integrated Additive White Gaussian Noise (AWGN) generation supported |
| Fading Simulation | Compatible with fading simulator options for channel emulation |
Rohde & Schwarz SMU200A-B103 Options:
- SMU200A - SMU-B16 - Differential Outputs (I OUT BAR / Q OUT BAR)
- SMU200A - SMU-B17 - Baseband Input
- SMU200A - SMU-B81 - Rear Panel Connectors for path 1 (recommended for use in 19" rack)
- SMU200A - SMU-B82 - Rear Panel Connectors for path 2 (recommended for use in 19" rack)
- SMU200A - SMU-Z5 - Adapter of AUX I/O interface to coaxial BNC connectors
- SMU200A - 1007.9845.32 - Operating and Service Manual (printed, English, A4 format)
- SMU200A - 1007.9845.39 - Operating and Service Manual (printed, English, letter format)
| Model | SMU200A-B103 |
|---|

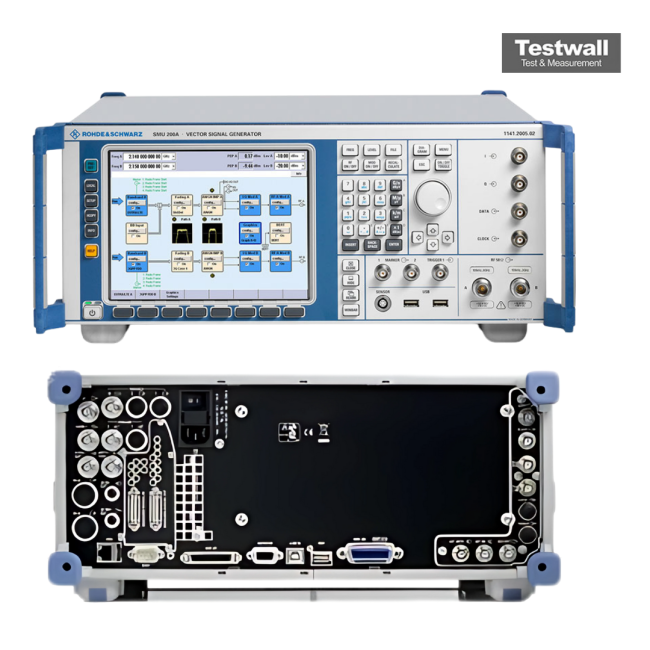

The Rohde & Schwarz SMU200A-3 is a versatile RF Vector Signal Generator covering 100kHz to 3GHz, supporting up to two RF and baseband paths. It enables advanced testing scenarios like 2x2 MIMO with realtime fading and offers optional fading simulation with up to 40 fading paths.
It supports modern wireless standards such as LTE, GSM, EDGE, HSPA+, WiMAX, and more. Modular architecture ensures flexibility and outstanding RF performance.
Testwall can supply the used Rohde & Schwarz SMU200A-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMU200A-3.
