Rohde & Schwarz SMV03
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3.3 GHz |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 10 ms |
| Modulation Bandwidth | 100 MHz (I/Q, RF) |
| Output Power | -140 to +13 dBm (+19 dBm overrange) |
| SSB Phase Noise | < -122 dBc/Hz (-128 dBc/Hz typ.) at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM, pulse, I/Q (external) |
| Level Accuracy | < 0.5 dB (to 2 GHz), < 0.9 dB (> 2 GHz) |
| Non-Harmonics | < -70 dBc (to 1.1 GHz), < -64 dBc (to 2.2 GHz), < -58 dBc (to 3.3 GHz) |
| Timebase Aging | 10 MHz, < 1 × 10⁻⁶ per year |
| Interfaces | GPIB, RS-232 |

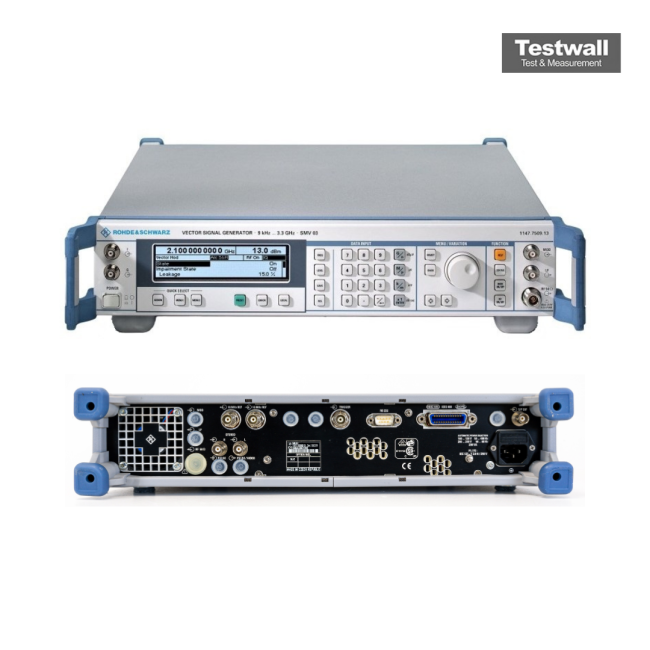

The Rohde & Schwarz SMV03 Vector Signal Generator features a frequency range from 9 kHz to 3.3 GHz, offering a high output level of +13 dBm, excellent spectral purity of <–122 dBc, and wide I/Q bandwidth of over 50 MHz. It supports vector, AM, FM, φM, and pulse modulations with integrated and external I/Q sources for flexible digital signal creation.
Ideal for WLAN and high-data applications, it integrates easily with the AMIQ generator and WinIQSIM™ software to produce digital signals with high accuracy.
Testwall can supply the used Rohde & Schwarz SMV03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMV03.
Options and configurations
- Modulation: AM, FM, ΦM, pulse (Opt. SML-B3), I/Q (external)
- Timebase Aging: 10 MHz, < 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. SML-B1)
