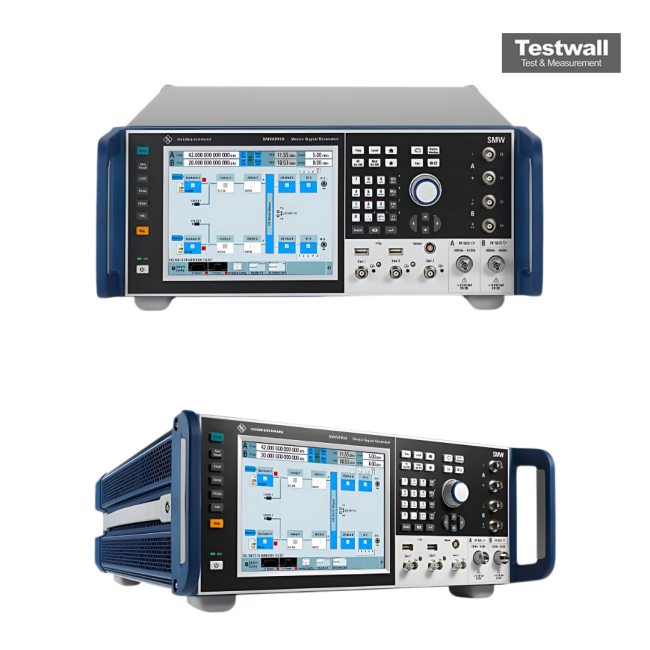

Rohde & Schwarz SMW200A-B106 6 GHz 2-Channel Vector Signal Generator, Type N (f)
6 GHz 2-Channel Vector Signal Generator
100 kHz to 6 GHz Frequency Range
2 Number of RF Channels
Type N (female) RF Connector Type
-145 dBm to +18 dBm Output Power Range
Up to 2 GHz (internal baseband) Modulation Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6 GHz |
| Number of RF Channels | 2 |
| RF Connector Type | Type N (female) |
| Output Power Range | -145 dBm to +18 dBm |
| Modulation Bandwidth | Up to 2 GHz (internal baseband) |
| Phase Noise | -139 dBc/Hz at 1 GHz, 20 kHz offset |
| Waveform Memory | Up to 4 Gsample (optional expansion) |
| Baseband Generator | Dual internal baseband with arbitrary waveform generation (ARB) |
| MIMO Configuration Support | Up to 8x2 MIMO (with multiple units coupled) |
| Interface Connectivity | LAN (LXI), USB, GPIB (optional), IEC 625 |
Rohde & Schwarz SMW200A-B106 6 GHz 2-Channel Vector Signal Generator, Type N (f) Options:
- SMW200A-B106 - SMW-B103 - Frequency Option RF Path A, 100 kHz to 3 GHz
- SMW200A-B106 - SMW-B106 - Frequency Option RF Path A, 100 kHz to 6 GHz
- SMW200A-B106 - SMW-B112 - Frequency Option RF Path A, 100 kHz to 12.75 GHz
- SMW200A-B106 - SMW-B120 - Frequency Option RF Path A, 100 kHz to 20 GHz
- SMW200A-B106 - SMW-B131 - Frequency Option RF Path A, 100 kHz to 31.8 GHz
- SMW200A-B106 - SMW-B140 - Frequency Option RF Path A, 100 kHz to 40 GHz
- SMW200A-B106 - SMW-B140N - Frequency Option RF Path A, 100 kHz to 40 GHz, I/Q modulation bandwidth and minimum pulse width limited
- SMW200A-B106 - SMW-B203 - Frequency Option RF Path B, 100 kHz to 3 GHz
- SMW200A-B106 - SMW-B206 - Frequency Option RF Path B, 100 kHz to 6 GHz
- SMW200A-B106 - SMW-B212 - Frequency Option RF Path B, 100 kHz to 12.75 GHz
- SMW200A-B106 - SMW-B220 - Frequency Option RF Path B, 100 kHz to 20 GHz
- SMW200A-B106 - SMW-B13 - Signal Routing and Baseband Main Module, one I/Q path to RF
- SMW200A-B106 - SMW-B13T - Signal Routing and Baseband Main Module, two I/Q paths to RF
- SMW200A-B106 - SMW-B13XT - Wideband Baseband Main Module, two I/Q paths to RF
- SMW200A-B106 - SMW-B20 - FM/φM Modulator
- SMW200A-B106 - SMW-B22 - Enhanced Phase Noise Performance and FM/φM Modulator
- SMW200A-B106 - SMW-B90 - Phase Coherence
- SMW200A-B106 - SMW-K22 - Pulse Modulator
- SMW200A-B106 - SMW-K23 - Pulse Generator
- SMW200A-B106 - SMW-K24 - Multifunction Generator
- SMW200A-B106 - SMW-K739 - Differential Analog I/Q Inputs
- SMW200A-B106 - SMW-B10 - Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime), 120 MHz RF bandwidth
- SMW200A-B106 - SMW-K16 - Differential Analog I/Q Outputs
- SMW200A-B106 - SMW-K18 - Digital Baseband Output
- SMW200A-B106 - SMW-K501 - Extended Sequencing
- SMW200A-B106 - SMW-K511 - ARB Memory Extension to 512 Msample
- SMW200A-B106 - SMW-K512 - ARB Memory Extension to 1 Gsample
- SMW200A-B106 - SMW-K522 - Baseband Extension to 160 MHz RF bandwidth
- SMW200A-B106 - SMW-K551 - Slow I/Q
- SMW200A-B106 - SMW-B9 - Wideband Baseband Generator with ARB (256 Msample), 500 MHz RF bandwidth
- SMW200A-B106 - SMW-K17 - Wideband Differential Analog I/Q Outputs
- SMW200A-B106 - SMW-K515 - ARB Memory Extension to 2 Gsample
- SMW200A-B106 - SMW-K526 - Baseband Extension to 2000 MHz RF bandwidth
- SMW200A-B106 - SMW-K62 - Additive White Gaussian Noise (AWGN)
- SMW200A-B106 - SMW-K540 - Envelope Tracking
- SMW200A-B106 - SMW-K541 - AM/AM, AM/φM Predistortion
- SMW200A-B106 - SMW-B14 - Fading Simulator
- SMW200A-B106 - SMW-K71 - Dynamic Fading
- SMW200A-B106 - SMW-K72 - Enhanced Fading Models
- SMW200A-B106 - SMW-K73 - OTA-MIMO Fading Enhancements
- SMW200A-B106 - SMW-K74 - MIMO Fading/Routing
- SMW200A-B106 - SMW-K75 - Higher-Order MIMO
- SMW200A-B106 - SMW-K76 - Multiple Entities
- SMW200A-B106 - SMW-K78 - Radar Echo Generation
- SMW200A-B106 - SMW-K550 - Stream Extender
- SMW200A-B106 - SMW-K820 - Customized Dynamic Fading
- SMW200A-B106 - SMW-K40 - GSM/EDGE
- SMW200A-B106 - SMW-K41 - EDGE Evolution
- SMW200A-B106 - SMW-K42 - 3GPP FDD
- SMW200A-B106 - SMW-K46 - CDMA2000®
- SMW200A-B106 - SMW-K47 - 1xEV-DO
- SMW200A-B106 - SMW-K49 - IEEE 802.16
- SMW200A-B106 - SMW-K50 - TD-SCDMA
- SMW200A-B106 - SMW-K51 - TD-SCDMA Enhanced BS/MS Tests
- SMW200A-B106 - SMW-K52 - DVB-H/DVB-T
- SMW200A-B106 - SMW-K54 - IEEE 802.11 (a/b/g/n)
- SMW200A-B106 - SMW-K55 - EUTRA/LTE
- SMW200A-B106 - SMW-K60 - Bluetooth® EDR
- SMW200A-B106 - SMW-K61 - Multicarrier CW Signal Generation
- SMW200A-B106 - SMW-K68 - TETRA Release 2
- SMW200A-B106 - SMW-K69 - LTE Closed-Loop BS Test
- SMW200A-B106 - SMW-K81 - LTE Log File Generation
- SMW200A-B106 - SMW-K83 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests
- SMW200A-B106 - SMW-K84 - EUTRA/LTE Release 9 and Enhanced Features
- SMW200A-B106 - SMW-K85 - EUTRA/LTE Release 10 (LTE-Advanced)
- SMW200A-B106 - SMW-K86 - IEEE 802.11ac
- SMW200A-B106 - SMW-K87 - 1xEV-DO Rev. B
- SMW200A-B106 - SMW-K89 - NFC A/B/F
- SMW200A-B106 - SMW-K112 - LTE Release 11 and Enhanced Features
- SMW200A-B106 - SMW-K113 - LTE Release 12
- SMW200A-B106 - SMW-K114 - 5G Air Interface Candidates
- SMW200A-B106 - SMW-K115 - Cellular IoT
- SMW200A-B106 - SMW-K116 - DVB-S2/DVB-S2X
- SMW200A-B106 - SMW-K141 - IEEE 802.11ad
- SMW200A-B106 - SMW-K542 - Baseband Power Sweep
- SMW200A-B106 - SMW-K240 - GSM/EDGE (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K241 - EDGE Evolution (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K242 - 3GPP FDD (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K244 - GPS 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K246 - CDMA2000® (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K247 - 1xEV-DO (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K249 - IEEE 802.16 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K250 - TD-SCDMA (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K251 - TD-SCDMA Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K252 - DVB-H/DVB-T (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K253 - DAB/T-DMB (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K254 - IEEE 802.11n (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K255 - EUTRA/LTE (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K260 - Bluetooth® EDR (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K261 - Multicarrier CW Signal Generation (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K262 - Additive White Gaussian Noise AWGN (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K266 - Galileo 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K268 - TETRA Release 2 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K283 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K284 - EUTRA/LTE Release 9 and Enhanced Features (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K285 - EUTRA/LTE Release 10 LTE-Advanced (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K286 - IEEE 802.11ac (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K287 - 1xEV-DO Rev. B (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K289 - NFC A/B/F (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K294 - Glonass 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K407 - Beidou 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K412 - LTE Release 11 and Enhanced Features (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K413 - EUTRA/LTE Release 12 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K441 - IEEE 802.11ad (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K300 - Pulse Sequencing
- SMW200A-B106 - SMW-K301 - Enhanced Pulse Sequencing
- SMW200A-B106 - SMW-K308 - Direction Finding
- SMW200A-B106 - SMW-K350 - DFS Signal Generation
- SMW200A-B106 - SMW-B81 - Rear Panel Connectors for RF path A (3/6 GHz) and I/Q
- SMW200A-B106 - SMW-B82 - Rear Panel Connectors for RF path B (3/6 GHz)
- SMW200A-B106 - SMW-B83 - Rear Panel Connectors for RF path A (20/31.8/40 GHz) and I/Q
- SMW200A-B106 - SMW-B84 - Rear Panel Connectors for RF path B (20 GHz)
- SMW200A-B106 - SMW-B93 - Solid State Drive
| Model | SMW200A-B106 |
|---|
The Rohde & Schwarz SMW200A with B106 option delivers precision RF performance across 100 kHz to 6 GHz, featuring dual-path modular architecture, 2 GHz I/Q modulation, ultra-low phase noise, and wide waveform generation support, ideal for advanced 5G, satellite, and radar testing.
This generator supports extensive modulation standards, integrated fading simulation up to 8x8 MIMO, and provides high EVM accuracy, making it perfect for modern wireless applications and test automation needs.
Testwall can supply the used Rohde & Schwarz SMW200A B106 6 GHz 2-Channel Vector Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMW200A B106 6 GHz 2-Channel Vector Signal Generator.
