Rohde & Schwarz UPL06
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz – 22 kHz |
| Measurement Functions | RMS, quasi-peak, DC, THD, THD+N, IMD, wow and flutter, frequency, phase, and more |
| Dynamic Range | Up to 120 dB |
| Input Impedance | 200 kΩ (balanced and unbalanced) |
| Maximum Input Voltage | 100 V RMS (balanced), 50 V RMS (unbalanced) |
| Generator Output Voltage | Up to 20 V RMS (balanced), up to 10 V RMS (unbalanced) |
| Residual Noise | < –110 dBV (unweighted, 22 kHz bandwidth) |
| Distortion Measurement Capability | THD+N down to –100 dB |
| Interface / Connectivity | IEC-Bus (GPIB), RS-232, and optional external PC control |
| Display | Built-in LCD display with graphical representation of measurement results |
| Model | UPL06 |
|---|

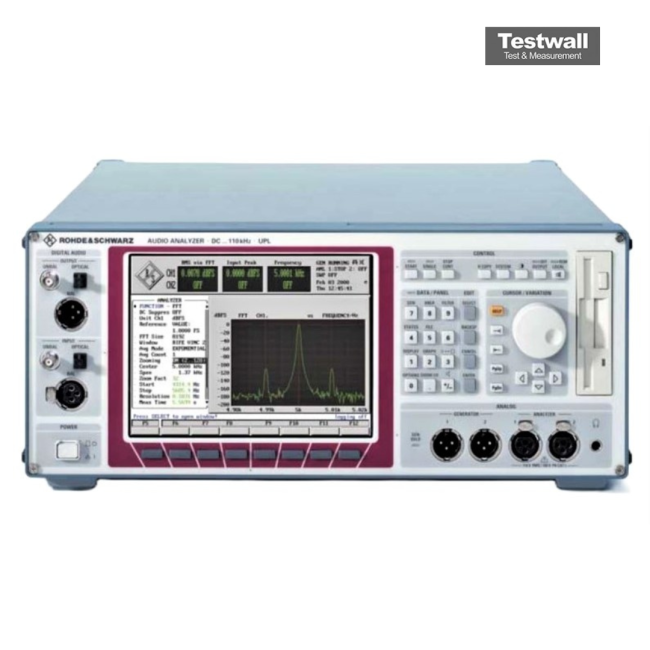

The Rohde & Schwarz UPL06 is a high-quality audio analyzer offering DC to 110 kHz range, real dual-channel measurements, XLR analog and digital inputs (optional), FFT and spectrum analysis, and third-octave analysis for acoustic applications. It features a large color TFT display, LAN Interface (R&S UPL-B11), and is fully programmable via GP-IB.
This analyzer is ideal for precise acoustic and electronic measurements with flexibility and accuracy, supporting comprehensive signal analysis and real-time data interpretation.
Testwall can supply the used Rohde & Schwarz UPL06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz UPL06.
