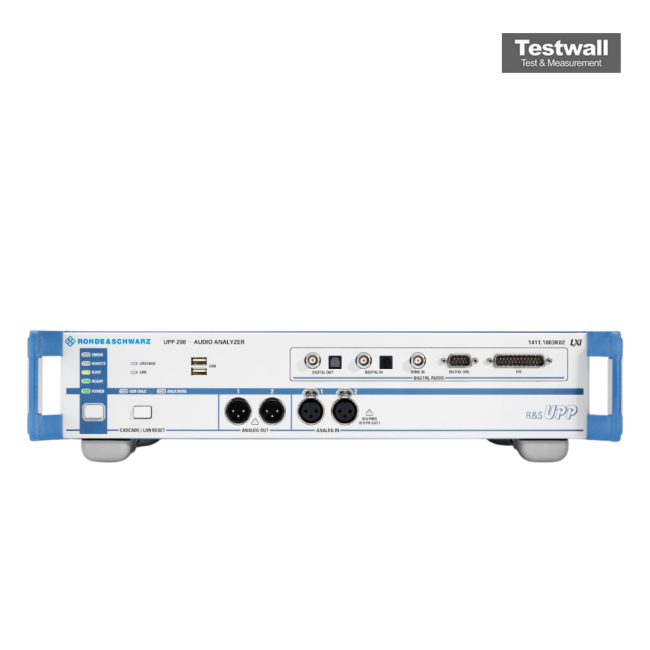

Rohde & Schwarz UPP200 Audio Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 100 kHz |
| Number of Channels | 2 (Stereo) |
| Total Harmonic Distortion (THD+N) | < -100 dB (0.001%) |
| Dynamic Range | 120 dB |
| Input Voltage Range | 100 mV to 200 V RMS |
| Output Voltage Range | 0.1 mV to 20 V RMS |
| Measurement Functions | RMS Level, THD+N, Signal-to-Noise Ratio, Frequency, Phase, Wow & Flutter |
| Interface / Connectivity | USB, LAN (Ethernet), IEC 625/IEEE 488 (GPIB) |
| Display | 10.4-inch color TFT touchscreen display |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz UPP200 Audio Analyser Options:
- UPP200 - UPP-B2 - Digital Audio Interfaces
- UPP200 - UPP-B4 - HDMI and Digital Audio Interfaces
- UPP200 - UPP-B8 - Multichannel Analog/Digital Audio Generator
- UPP200 - UPP-K800 - Cascading Software for R&S UPP800
- UPP200 - UPP-K601 - 1/n Octave Analysis
- UPP200 - UPP-K21 - Digital Audio Protocol for R&S UPP-B2
- UPP200 - UPP-K41 - Dolby Data Stream Decoding for R&S UPP-B4
- UPP200 - UPP-K45 - Extended Audio/Video Measurements for R&S UPP-B4
| Model | UPP200 |
|---|
The Rohde & Schwarz UPP200 Audio Analyzer features two independent channels designed for high-precision audio signal testing. It supports various digital and analog interfaces, providing accurate measurements across signal parameters such as level, distortion, and frequency response. Optimized for lab and production use, it offers simultaneous dual-channel analysis with high resolution and fast processing speeds. Used in audio component evaluation, it’s reliable and flexible with user-friendly controls.
Testwall can supply the used Rohde & Schwarz UPP200 Audio Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz UPP200 Audio Analyzer.
