Rohde & Schwarz

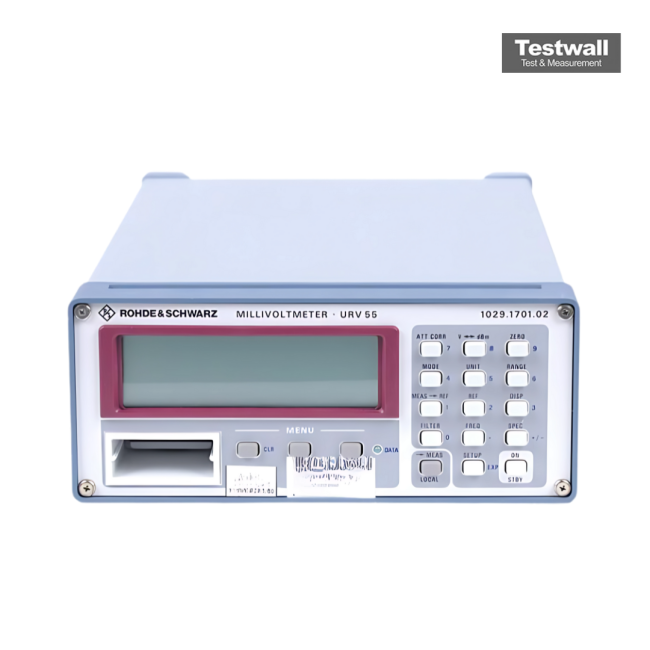

Rohde & Schwarz URV55
Millivoltmeter 3GHz
100 kHz to 9.3 GHz (depending on sensor used) Frequency Range
-60 dBm to +47 dBm (depending on sensor used) Power Measurement Range
LCD with backlight, displays power in dBm, dBµV, dBmV, or Watts Display
Average power, peak power, and voltage measurement modes Measurement Modes
IEEE 488 (GPIB), RS-232 serial interface Interfaces
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 9.3 GHz (depending on sensor used) |
| Power Measurement Range | -60 dBm to +47 dBm (depending on sensor used) |
| Display | LCD with backlight, displays power in dBm, dBµV, dBmV, or Watts |
| Measurement Modes | Average power, peak power, and voltage measurement modes |
| Interfaces | IEEE 488 (GPIB), RS-232 serial interface |
| Sensor Connector | Compatible with Rohde & Schwarz URV5-Z series sensors |
| Power Supply | AC 100 V to 240 V, 50/60 Hz; battery operation supported |
| Measurement Uncertainty | ±0.5 dB typical (sensor dependent) |
| Operating Temperature Range | 0 °C to +50 °C |
| Dimensions (W x H x D) | Approximately 222 mm x 88 mm x 222 mm |
| Model | URV55 |
|---|
The Rohde & Schwarz URV55 is a versatile millivoltmeter and power meter supporting 200 V to 1000 V and frequencies from 9 kHz to 3 GHz using compatible measuring heads.
It measures power from 100 pW to 30 W, features an LCD graphics display, analog output, and optional source calibration at 1 mW/50 MHz.
Testwall can supply the used Rohde & Schwarz URV55, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz URV55.
