Rohde & Schwarz NRVD
| Attribute | Value |
|---|---|
| Channels | 2 |
| Frequency Range | DC to 40 GHz |
| Power Range | 100 pW to 30 W |
| Dimensions | 219 × 147 × 350 mm |
| Weight | 4.5 kg |
| Accuracy | 0.013 dB (0.3%) + 1 digit at 18 to 28 °C (meter only) |
| Compatible Sensors | NRV-Z series sensors, URV5-Z probes and insertion units |
| Power Reference | 50 MHz, 1.00 mW ±0.7%, internal |
| Display | LCD, 5 digits, dual display with bargraph |
| Interfaces | GPIB; Opt. NRVD-B2: 2 analog outputs, trigger input |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| NRV-Z1 | 10 MHz to 18 GHz | 200 pW to 20 mW | diode |
| NRV-Z2 | 10 MHz to 18 GHz | 20 nW to 500 mW | diode, with attenuator |
| NRV-Z3 | 1 MHz to 2.5 GHz | 100 pW to 13 mW | diode, 75 Ω |
| NRV-Z4 | 100 kHz to 6 GHz | 100 pW to 20 mW | diode |
| NRV-Z5 | 100 kHz to 6 GHz | 10 nW to 500 mW | diode, with attenuator |
| NRV-Z6 | 50 MHz to 26.5 GHz | 400 pW to 20 mW | diode |
| NRV-Z15 | 50 MHz to 40 GHz | 400 pW to 20 mW | diode |
| NRV-Z31 | 30 MHz to 6 GHz | 1 µW to 20 mW | peak (diode) |
| NRV-Z32 | 30 MHz to 6 GHz | 100 µW to 2 W (model .04) or 4 W (model .05) | peak (diode), with attenuator |
| NRV-Z33 | 30 MHz to 6 GHz | 1 mW to 20 W | peak (diode), with attenuator |
| NRV-Z51 | DC to 18 GHz | 1 µW to 100 mW | thermocouple |
| NRV-Z52 | DC to 26.5 GHz | 1 µW to 100 mW | thermocouple |
| NRV-Z53 | DC to 18 GHz | 100 µW to 10 W | thermocouple, high power |
| NRV-Z54 | DC to 18 GHz | 300 µW to 30 W | thermocouple, high power |
| URV5-Z | |||
| URV5-Z1 | |||
| URV5-Z2 | |||
| URV5-Z4 | |||
| URV5-Z7 |
Rohde & Schwarz NRVD Options:
- NRVD - B2 - I/O Option: two analog outputs, DC frequency input, trigger input, ready output for extended automation and sweep testing

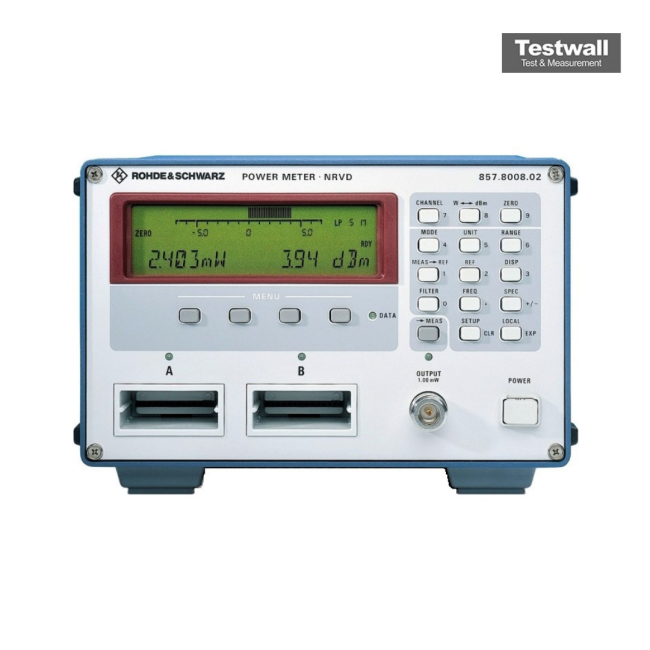

The Rohde & Schwarz NRVD is a high-performance 2-channel digital power meter supporting measurements from DC to 40 GHz and power levels between 100 pW and 30 W, based on the connected sensor. It supports readings in W, dBm, V, dBV, dBµV, %, and dB relative modes including A/B, B/A, A–B, B–A. The device includes 13 digital filters, memory for 20 configuration profiles, and a backlit graphic LCD display for clear readouts. It also features an RF output at 50 MHz for Power Sensor calibration and is programmable via GP-IB.
This device is ideal for precise RF power measurement tasks in labs and field settings, offering flexible measurement modes and reliable sensor calibration capabilities.
Testwall can supply the used Rohde & Schwarz NRVD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRVD.
