Rohde & Schwarz VSA
| Attribute | Value |
|---|---|
| Frequency Range | Up to 7 GHz (depending on configuration) |
| Analysis Bandwidth | Up to 160 MHz |
| Dynamic Range | Up to 100 dB |
| Modulation Analysis | Supports AM, FM, PM, QAM, PSK, FSK, and custom modulation formats |
| Standards Support | LTE, 5G NR, WLAN, Bluetooth, GSM, WCDMA, and more |
| Display | Multi-window touchscreen display with intuitive GUI |
| Input Impedance | 50 Ohm |
| Connectivity | USB, LAN (Ethernet), GPIB interface support |
| Software Platform | Rohde & Schwarz VSE Vector Signal Explorer software-based analysis |
| Trigger Options | Internal, external, IF power, and RF power trigger modes |
Rohde & Schwarz VSA Options:
- VSA - B1 - Firmware Standard M, NTSC
| Model | VSA |
|---|

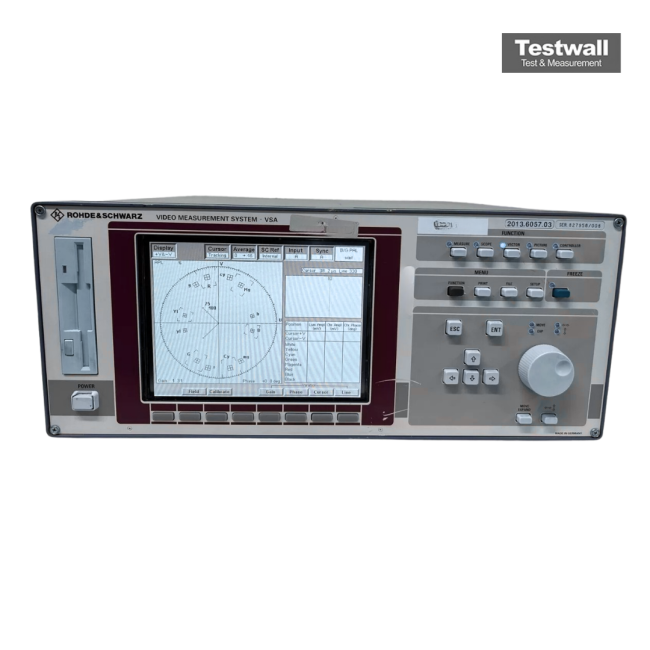

The Rohde & Schwarz VSA Video Measurement System integrates a video analyzer, vectorscope, oscilloscope, monitor, and PC controller into a compact 19" desktop unit. Its advanced measurement accuracy, high-speed performance, and wide-ranging interface options make it ideal for lab work, production, and automated testing environments.
Designed for laboratory, production, and quality assurance settings, the VSA ensures reliable video measurement and system integration with modular expandability for future needs.
Testwall can supply the used Rohde & Schwarz VSA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz VSA
