Rohde & Schwarz ZNA43
| Manufacturer | Rohde & Schwarz |
| Model | ZNA43 |
| Product | Vector Network Analyzer, 10 MHz to 43.5 GHz |
| Type | Used |

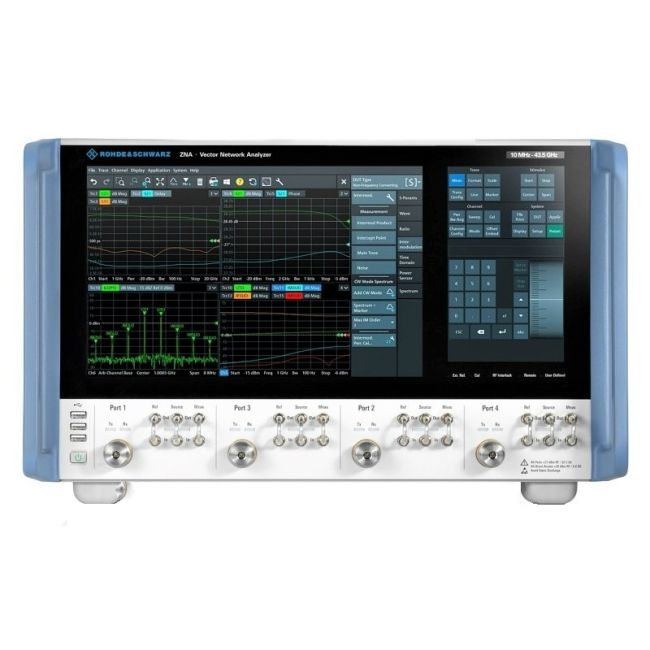

ROHDE & SCHWARZ ZNA43 Vector Network Analyzer
The Rohde & Schwarz ZNA43 features exceptional stability, low trace noise and excellent raw data, making it a perfect choice for development and production applications that require high accuracy, e.g. for developing and producing components and modules for A&D and satellite applications. It offers up to four internal, phase-cohe sources, allowing independent control of the signal's frequency at each port as well as phase measurements on mixers. The Rohde & Schwarz ZNA43 provides two internal LO sources, a true multichannel receiver architecture, pulse generators and modulators, an internal combiner and comprehensive trigger and synchronization capabilities.
Even intermodulation measurements on mixers and receivers can be performed on the Rohde & Schwarz ZNA43 without external signal generators, minimizing test time and simplifying test configuration. Users no longer need to work through a jungle of menus. Instead, a wizard guides them step by step through configuration and calibration. All relevant parameters are covered, and measurement traces are created in just a few steps. The Rohde & Schwarz ZNA43 characterizes low-noise amplifiers (LNA), receivers, frequency-converting DUTs and T/R modules precisely and efficiently. Two independent touchscreens provide utmost flexibility for smooth, efficient operation.
Specifications for the ROHDE & SCHWARZ ZNA43 Vector Network Analyzer Include:
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 2 or 4 |
| Dynamic Range | 139 dB (typ.), up to 170 dB (typ., with opt) |
| Trace noise | < 0.001 dB (at 1 kHz IF bandwidth) |
