Rohde & Schwarz ZNA50
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 50 GHz |
| Number of Ports | 2 or 4 ports |
| Dynamic Range | Up to 143 dB |
| Output Power | +15 dBm maximum |
| Measurement Speed | 4 µs per point (typical) |
| Trace Noise | 0.002 dB RMS (typical) |
| Port Connector Type | 2.4 mm (f) |
| IF Bandwidth | 1 Hz to 10 MHz |
| Power Sweep Range | -60 dBm to +15 dBm |
| Operating Temperature | 0 °C to 55 °C |
Rohde & Schwarz ZNA50 Options:
- ZNA50 - B16 - Direct source and receiver access
- ZNA50 - B21 - Source step attenuator, port 1
- ZNA50 - B22 - Source step attenuator, port 2
- ZNA50 - B23 - Source step attenuator, port 3
- ZNA50 - B24 - Source step attenuator, port 4
- ZNA50 - B31 - Receiver step attenuator, port 1
- ZNA50 - B32 - Receiver step attenuator, port 2
- ZNA50 - B33 - Receiver step attenuator, port 3
- ZNA50 - B34 - Receiver step attenuator, port 4
- ZNA50 - B41 - Internal pulse modulator, port 1
- ZNA50 - B42 - Internal pulse modulator, port 2
- ZNA50 - B43 - Internal pulse modulator, port 3
- ZNA50 - B44 - Internal pulse modulator, port 4
- ZNA50 - B3 - 3rd and 4th internal source (4-port model)
- ZNA50 - B161 - Source monitor access port 1
- ZNA50 - B163 - Source monitor access port 1 and port 3
- ZNA50 - B302 - Low-noise amplifier, port 2
- ZNA50 - B312 - Low-noise amplifier, port 2 (no export restriction)
- ZNA50 - B501 - Low power spurious reduction, port 1
- ZNA50 - B511 - Low power spurious reduction, port 1 (no export restriction)
- ZNA50 - B212 - Internal combiner, port 1 and port 2
- ZNA50 - B213 - Internal combiner, port 1 and port 3
- ZNA50 - B52 - 2nd internal source and LO (2-port model)
- ZNA - B4 - Precision frequency reference (OCXO)
- ZNA - B5 - 2nd internal LO source (4-port model)
- ZNA - B7 - Data streaming memory
- ZNA - B8 - mmWave converter LO
- ZNA - B15 - RFFE GPIO interface
- ZNA - B19 - Additional removable hard disk
- ZNA - B26 - Direct IF access
- ZNA - B91 - Trigger and control I/O board
- ZNA - K1 - Spectrum analyzer mode (based on fast Fourier transform)
- ZNA - K2 - Time domain analysis (TDR)
- ZNA - K20 - Extended time domain analysis (including eye diagram)
- ZNA - K4 - Scalar mixer measurements, arbitrary frequency-converting measurements
- ZNA - K5 - Vector mixer measurements
- ZNA - K6 - Phase coherent source control
- ZNA - K61 - True differential mode
- ZNA - K7 - Measurements on pulsed signals
- ZNA - K17 - Increased IF bandwidth 30 MHz
- ZNA - K8 - mmWave converter support
- ZNA - K9 - Group delay measurements on frequency converters without LO access
- ZNA - K19 - 1 mHz frequency resolution
- ZNA - K28 - Continuous data recording
- ZNA - K30 - Noise figure measurement
- ZNA - K50 - Uncertainty analysis
- ZNA - K50P - Uncertainty analysis, pre-installed
- ZNA - K51 - Security write protection
- ZNA - K210 - Easy deembedding
- ZNA - K220 - In-situ deembedding
- ZNA - K230 - Smart fixture deembedding
- ZNA - K231 - Delta-L PCB characterization
- ZNA - K980 - Health and utilization monitoring service (HUMS)
| Model | ZNA50 |
|---|

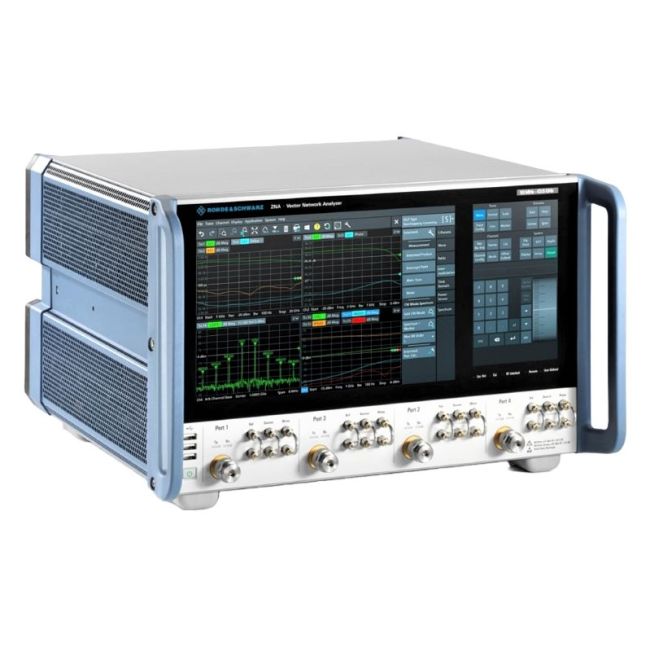

ROHDE & SCHWARZ ZNA50 Vector Network Analyzer
The Rohde & Schwarz ZNA50 features exceptional stability, low trace noise and excellent raw data, making it a perfect choice for development and production applications that require high accuracy, e.g. for developing and producing components and modules for A&D and satellite applications. It offers up to four internal, phase-cohe sources, allowing independent control of the signal's frequency at each port as well as phase measurements on mixers. The Rohde & Schwarz ZNA50 provides two internal LO sources, a true multichannel receiver architecture, pulse generators and modulators, an internal combiner and comprehensive trigger and synchronization capabilities.
Even intermodulation measurements on mixers and receivers can be performed on the Rohde & Schwarz ZNA50 without external signal generators, minimizing test time and simplifying test configuration. Users no longer need to work through a jungle of menus. Instead, a wizard guides them step by step through configuration and calibration. All relevant parameters are covered, and measurement traces are created in just a few steps. The Rohde & Schwarz ZNA50 characterizes low-noise amplifiers (LNA), receivers, frequency-converting DUTs and T/R modules precisely and efficiently. Two independent touchscreens provide utmost flexibility for smooth, efficient operation.
Specifications for the ROHDE & SCHWARZ ZNA50 Vector Network Analyzer Include:
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 2 or 4 |
| Dynamic Range | 139 dB (typ.), up to 170 dB (typ., with opt) |
| Trace noise | < 0.001 dB (at 1 kHz IF bandwidth) |
