Rohde & Schwarz ZRB2
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8.5 GHz |
| Connector Type | N-Type (50 Ω) |
| Calibration Kit Type | Mechanical Calibration Kit |
| Impedance | 50 Ω |
| Compatible Instruments | Rohde & Schwarz Vector Network Analyzers (VNA) |
| Standards Included | Open, Short, Match, Through (OSMT) |
| Calibration Method | TOSM (Through-Open-Short-Match) |
| Gender | Male and Female Standards Included |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +71 °C |
Rohde & Schwarz ZRB2 Options:
- ZRB2 - 373.9017.52 - 50 Ω, 5 to 3000 MHz, test port connector female
- ZRB2 - 373.9017.55 - 50 Ω, 5 to 3000 MHz, test port connector male
- ZRB2 - 373.9017.53 - 50 Ω, 5 to 2500 MHz, test port connector female
- ZRB2 - 373.9017.56 - 50 Ω, 5 to 2500 MHz, test port connector male
- ZRB2 - 802.1018.73 - 75 Ω, 5 to 2000 MHz, test port connector female
- ZRB2 - 802.1018.76 - 75 Ω, 5 to 2000 MHz, test port connector male
| Model | ZRB2 |
|---|

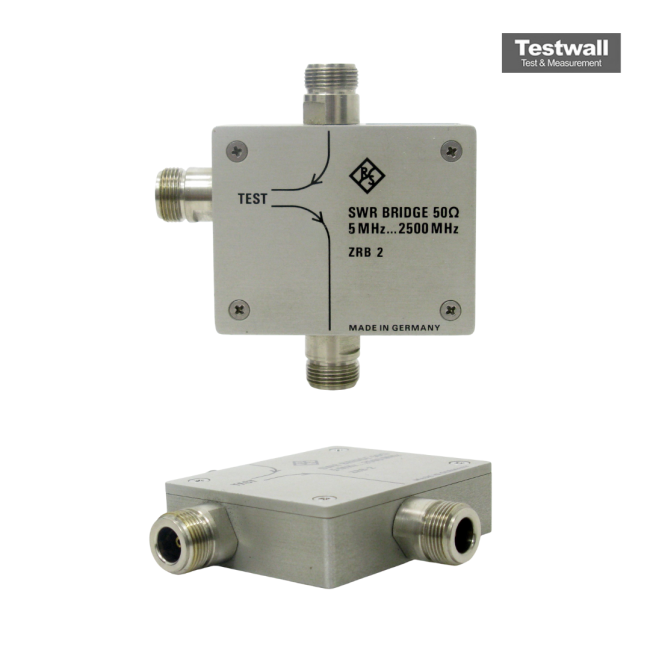

The Rohde & Schwarz ZRB2 SWR Bridge enables precise measurement of the magnitude and phase of the reflection coefficient for devices like filters, amplifiers, mixers, and antennas. It operates by routing the generator's output through the bridge to the test device, with reflected signals indicating complex reflection characteristics.
Used in conjunction with R&S ETL, ZVL, ZVT, ZVB, and ZVA models, the ZRB2 facilitates accurate impedance and admittance calculations by converting reflection coefficients into useful parameters.
Testwall can supply the used R&S ZRB2 SWR Bridge, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the R&S ZRB2 SWR Bridge.
