Rohde & Schwarz ZVA67
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Number of Test Ports | 2 (expandable up to 4) |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -30 dBm to +3 dBm (typical) |
| Measurement Speed | Up to 32 µs per point (sweep time) |
| Trace Noise | 0.004 dB RMS (typical at 10 Hz IF bandwidth) |
| IF Bandwidth | 1 Hz to 1 MHz |
| Port Connector Type | 1.85 mm (female) |
| Number of Points per Sweep | 1 to 60,001 |
| Operating System | Windows 7 (embedded), LAN/USB/GPIB connectivity |
Rohde & Schwarz ZVA67 Options:
- ZVA67 - B16 - Direct Generator/Receiver Access (two ports)
- ZVA67 - B16 - Direct Generator/Receiver Access (four ports)
- ZVA67 - B21 - Generator Step Attenuator Port 1
- ZVA67 - B22 - Generator Step Attenuator Port 2
- ZVA67 - B23 - Generator Step Attenuator Port 3 (four ports)
- ZVA67 - B24 - Generator Step Attenuator Port 4 (four ports)
- ZVA67 - B31 - Receiver Step Attenuator Port 1
- ZVA67 - B32 - Receiver Step Attenuator Port 2
- ZVA67 - B33 - Receiver Step Attenuator Port 3 (four ports)
- ZVA67 - B34 - Receiver Step Attenuator Port 4 (four ports)
- ZVAB - B4 - Oven Quartz (OCXO)
- ZVA - B7 - Pulsed Measurements with Increased Recording Time (two-port models)
- ZVA - B7 - Pulsed Measurements with Increased Recording Time (four-port models)
- ZVAB - B14 - Universal Control Interface I/O Port
- ZVAB - B18 - Removable Hard Disc 500 Gbyte
- ZVAB - B19 - Additional Removable Hard Disc 500 Gbyte
- ZVA - B8 - External Attenuator Control for R&S ZVA-Z90E/-Z110E
- ZVA - B9 - Cable Set for R&S ZVA-K9 (using R&S ZVA40 with 2.4 mm, R&S ZVA50 or R&S ZVA67)
- ZVA - K4 - Frequency Conversion
- ZVA - K5 - Mixer Phase Measurement
- ZVA - K6 - True Differential Mode
- ZVA - K7 - Pulsed Measurements
- ZVA - K8 - Converter Control Software
- ZVA - K9 - Mixer Delay without LO Access
- ZVA - K10 - Long Distance Mixer Delay
- ZVA - K17 - 5 MHz Receiver Bandwidth
- ZVA - K27 - Internal Pulse Generators
- ZVA - K30 - Noise Figure Measurements
- ZVAB - K2 - Time Domain
- ZVA - U116 - Upgrade CPU Board to R&S FMR11 including upgrade to Windows Embedded Standard 7
| Model | ZVA67 |
|---|

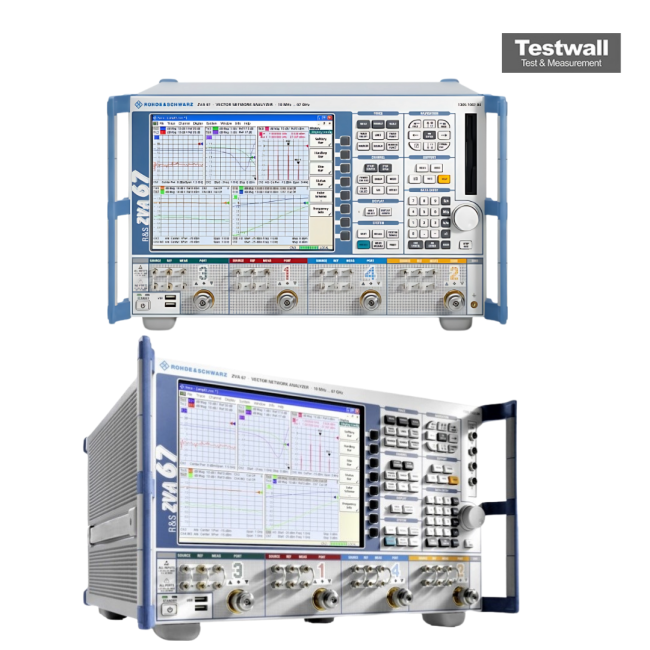

The R&S ZVA67 Network Analyzer from Rohde & Schwarz offers precise RF performance with a frequency range from 300 kHz to 67 GHz, over 140 dB dynamic range, and high output power exceeding 15 dBm. It supports pulse profile measurements with 12.5 ns resolution, true differential measurements, and rapid 3.5 µs test points for demanding applications.
Optimized for both linear and nonlinear analysis, it handles amplifiers, mixers, transceivers, and receivers, with versatile calibration (TOSM, TRL/LRL, TOM, TRM, TNA, UOSM) and optional auto calibration units.
Testwall can supply the used R&S ZVA67 Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the R&S ZVA67 Network Analyzer.
