Rohde & Schwarz

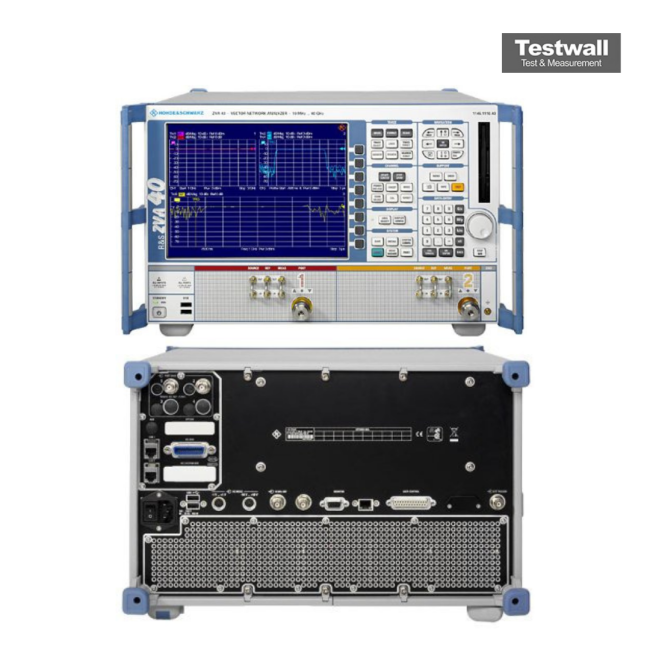

Rohde & Schwarz ZVA8
300KHz - 8GHz Vector Scalar S-ParaMeter Network Analyser
300 kHz to 8 GHz Frequency Range
2 or 4 ports Number of Test Ports
Up to 130 dB Dynamic Range
-30 dBm to +10 dBm Output Power Range
Up to 32 ms per sweep (601 points) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 8 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -30 dBm to +10 dBm |
| Measurement Speed | Up to 32 ms per sweep (601 points) |
| IF Bandwidth | 1 Hz to 500 kHz |
| Trace Noise | <0.005 dB RMS |
| Port Connector Type | 3.5 mm (f) / N-type connectors |
| S-Parameter Measurements | Full 2-port and 4-port S-parameters (S11, S21, S12, S22, etc.) |
| Operating Temperature Range | +5°C to +40°C |
| Model | ZVA8 |
|---|
The ROHDE & SCHWARZ ZVA8 Network Analyzer offers top-tier RF performance with a wide dynamic range (>140 dB), fast measurement speed (<3.5 µs), and a frequency range from 300 kHz to 8 GHz. It supports true differential and pulse profile measurements with 12.5 ns resolution.
Ideal for advanced RF tasks including linear/nonlinear amplifier, mixer, and receiver measurements. Supports multiple calibration methods and automatic calibration units.
Testwall can supply the used ROHDE & SCHWARZ ZVA8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ROHDE & SCHWARZ ZVA8.
