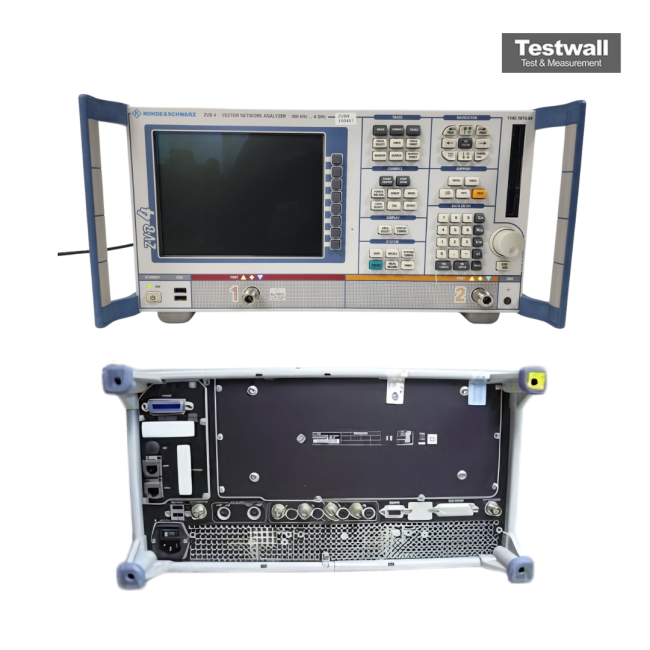

Rohde & Schwarz ZVB4
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 4 GHz |
| Number of Test Ports | 2 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -50 dBm to +10 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, stability factors, group delay |
| Trace Noise | 0.004 dB RMS |
| IF Bandwidth | 1 Hz to 500 kHz |
| Number of Points per Sweep | Up to 60,001 |
| Connector Type (Test Ports) | N-type female, 50 Ohm |
| Display | 10.4-inch XGA color LCD touchscreen |
Rohde & Schwarz ZVB4 Options:
- ZVB4 - R&S ZVAB-B4 - Oven Quartz (OCXO)
- ZVB4 - R&S ZVAB-K2 - Time Domain
- ZVB4 - R&S ZVB-K3 - Mixer and Harmonic Measurements
| Model | ZVB4 |
|---|
The R&S ZVB4 Vector Network Analyzer offers coverage from 300 kHz to 4 GHz with two or four test ports, ideal for multiport and balanced DUT measurements. It supports two internal sources for RF and LO signal generation, 60001 points per trace, and a dynamic range over 123 dB. Measurement speed is under 4.5 ms for 201 points with fast data transfer and switching. It operates on a Windows XP Embedded system with advanced graphical capabilities and intuitive controls.
Ideal for RF component analysis in both development and production, the ZVB4 simplifies complex testing with automatic calibration options and mixed-mode S-parameter support for balanced measurements.
Testwall can supply the used R&S ZVB4 Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVB4 Vector Network Analyzer.
