Rohde & Schwarz ZVCE
| Attribute | Value |
|---|---|
| Frequency Range | 20 kHz to 8 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase |
| IF Bandwidth | 1 Hz to 100 kHz |
| Connector Type | N-type 50 Ohm |
| Trace Noise | 0.001 dB rms (typical) |
| Display | 10.4-inch color TFT LCD |
| Interface | GPIB, USB, LAN (Ethernet) |
| Model | ZVCE |
|---|

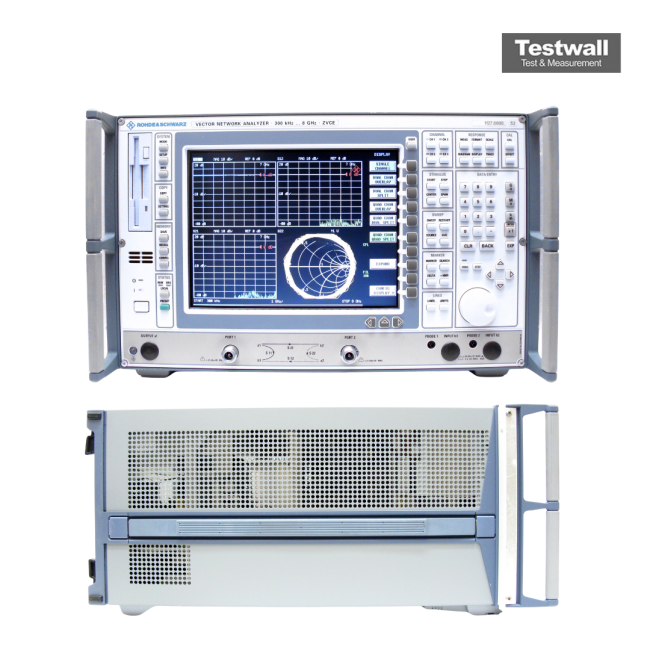

The Rohde & Schwarz ZVCE is a 3-channel Vector Network Analyzer operating from 20 kHz to 8 GHz, featuring an integrated generator, test set, and receiver. It offers a dynamic range exceeding 125 dB, independent four-parameter measurement, and high-resolution 26 cm color display.
Ideal for high-speed, multiport, and segmented diagram measurements, the ZVCE includes a patented automatic two-port calibration system and advanced calibration techniques for enhanced precision.
Testwall can supply the used Rohde & Schwarz ZVCE, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVCE.
