Keysight (Agilent) N5244A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.004 dB RMS typical |
| Connector Type | 2.4 mm (f) test ports |
| Measurement Speed | Up to 40,000 points per second |
| System Performance | PNA Series Vector Network Analyzer (VNA) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) N5244A Options:
- N5244A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires Option 224 or 423)
- N5244A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5244A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5244A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5244A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5244A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5244A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
| Model | N5244A |
|---|

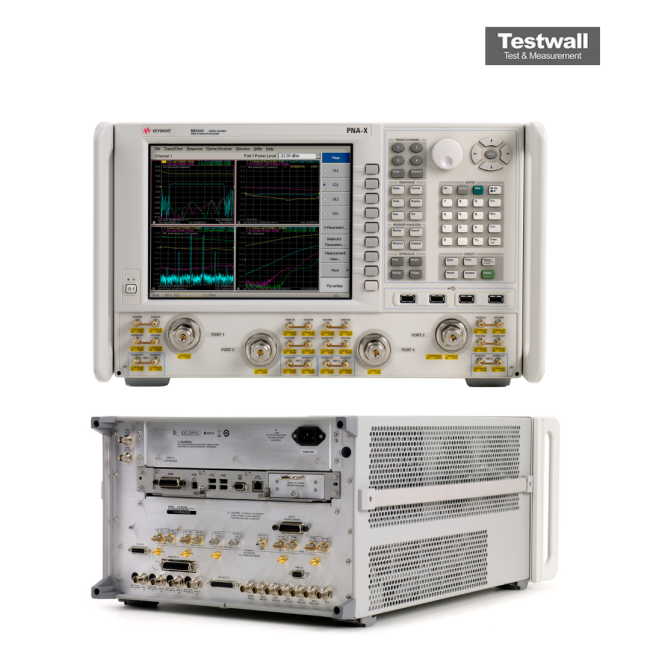

The Keysight (Agilent) N5244A PNA-X Network Analyzer covers 10 MHz to 43.5 GHz with 2 or 4 ports and dual internal sources. It delivers exceptional performance with 126 dB system dynamic range, low -111 dBm noise floor, and high output power up to +18 dBm. It includes 32,001 points, 200 channels, 15 MHz IF bandwidth, low harmonics at -60 dBc, and wide power sweep range of 38 dB.
Ideal for S-parameters, noise figure, gain compression, intermodulation, and harmonic distortion tests, including true-differential stimulus and nonlinear waveform characterization for amplifiers and converters.
Testwall can supply the used Keysight (Agilent) N5244A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5244A
