Safran (formerly Orolia Spectracom) GSG-8
Safran (formerly Orolia Spectracom) GSG-8 Options:
- GSG-8 - GSG-811 - GNSS Simulator with 1 RF Output and 1 GPU
- GSG-8 - GSG-821 - GNSS Simulator with 2 RF Outputs and 1 GPU
- GSG-8 - GSG-831 - GNSS Simulator with 3 RF Outputs and 1 GPU
- GSG-8 - GSG-842 - GNSS Simulator with 4 RF Outputs and 2 GPUs
- GSG-8 - SKY-HIL - Hardware-in-the-loop mode, allows input of vehicle trajectory information in real-time
- GSG-8 - SKY-EXLI - Extended Limits, allows simulation of vehicle speeds greater than 600m/s
- GSG-8 - SKY-IQFILE - IQ File, allows saving of generated IQ data to file
- GSG-8 - SKY-MULTI - Multiple Instances, allows use of separate RF outputs for individual simulations (Ex. RTK Base and Rover). Minimum of 2 RF outputs required
- GSG-8 - SKY-ADVJAM - Advanced Jamming simulation, allows creation of jamming transmitters defined by their location (fixed and dynamic), antenna pattern, signals, and power levels. Minimum of 2 RF outputs required
- GSG-8 - SKY-ADVSP - Advanced Spoofing simulation, allows creation of spoofing transmitters defined by their location (fixed and dynamic), antenna pattern, spoofing signals, and power levels. SKY-ADVJAM and a minimum of 2 RF outputs required
- GSG-8 - SKY-CSI - Custom signal injections, allows real-time simulation of user-defined GNSS signals (custom modulation and navigation message)
- GSG-8 - SKY-PLG-SDK - Plugin SDK allows creation and integration of custom plugins for Skydel
- GSG-8 - SKY-PLG-RTK - RTCM message generation via virtual basestation
- GSG-8 - SKY-SSUP - Extends or renews warranty and support. Priced per year
| Model | GSG-8 |
|---|

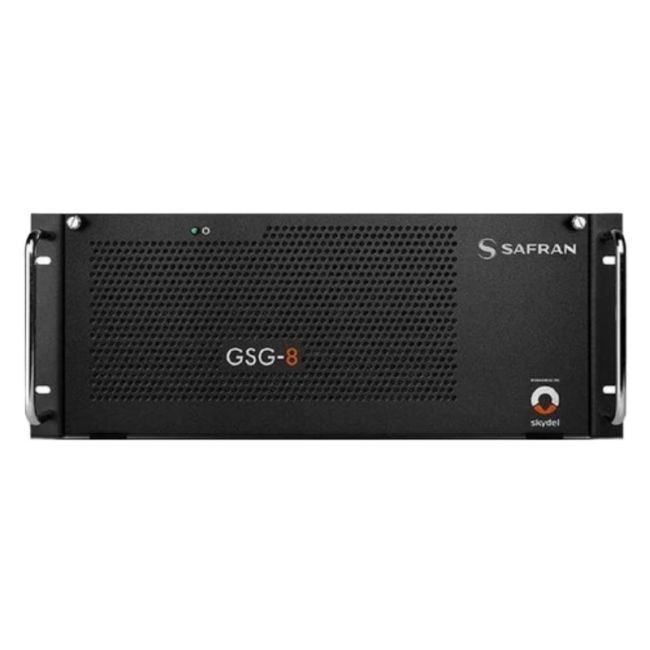

The Safran GSG-8 Advanced GNSS Simulator offers cutting-edge GNSS signal testing and sensor simulation, featuring a 1000 Hz iteration rate, real-time synchronization, high dynamics, and full all-in-view satellite signal simulation. Supporting multi-constellation and multi-frequency environments, it provides advanced capabilities for the most demanding GNSS applications.
With support for jamming, spoofing, repeater simulation, and synchronized trajectories across multiple Skydel instances, it enables precise testing of complex GNSS systems. The SDK allows encrypted or proprietary signal integration for highly specialized needs.
Testwall can supply the used Safran GSG-8 Advanced GNSS Simulator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Safran GSG-8 Advanced GNSS Simulator.
