Schaffner NSG 200D
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Pulse Waveform | 5/50 ns (EFT/Burst per IEC 61000-4-4) |
| Repetition Rate | 2.5 kHz and 5 kHz |
| Burst Duration | 15 ms burst period, 300 ms burst period |
| Coupling Method | Capacitive coupling clamp and direct coupling |
| Applicable Standards | IEC 61000-4-4, EN 61000-4-4 |
| Output Impedance | 50 Ω |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 15°C to 35°C (59°F to 95°F) |
| Dimensions (W x H x D) | Approximately 430 mm x 132 mm x 450 mm |
| Model | NSG 200D |
|---|

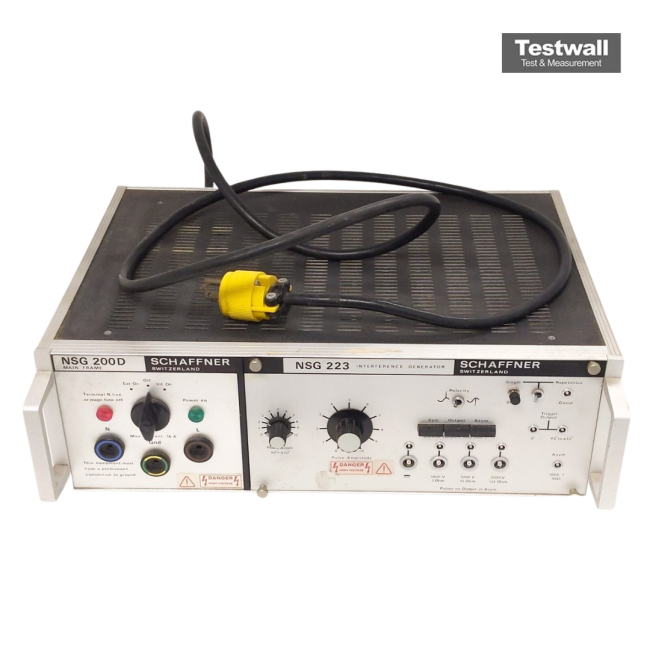

The Schaffner NSG 200D ESD Mainframe integrates essential components including power supplies, switches, filters, and safety devices required for all NSG200 plug-ins. It is designed to simulate interference encountered on AC and DC power supplies, making it ideal for testing sensitivity to electrical disturbances.
Engineers and technicians can use the NSG 200D for component verification, quality control, and acceptance testing, ensuring robust performance across different operating conditions.
Testwall can supply the used Schaffner NSG 200D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG 200D.
